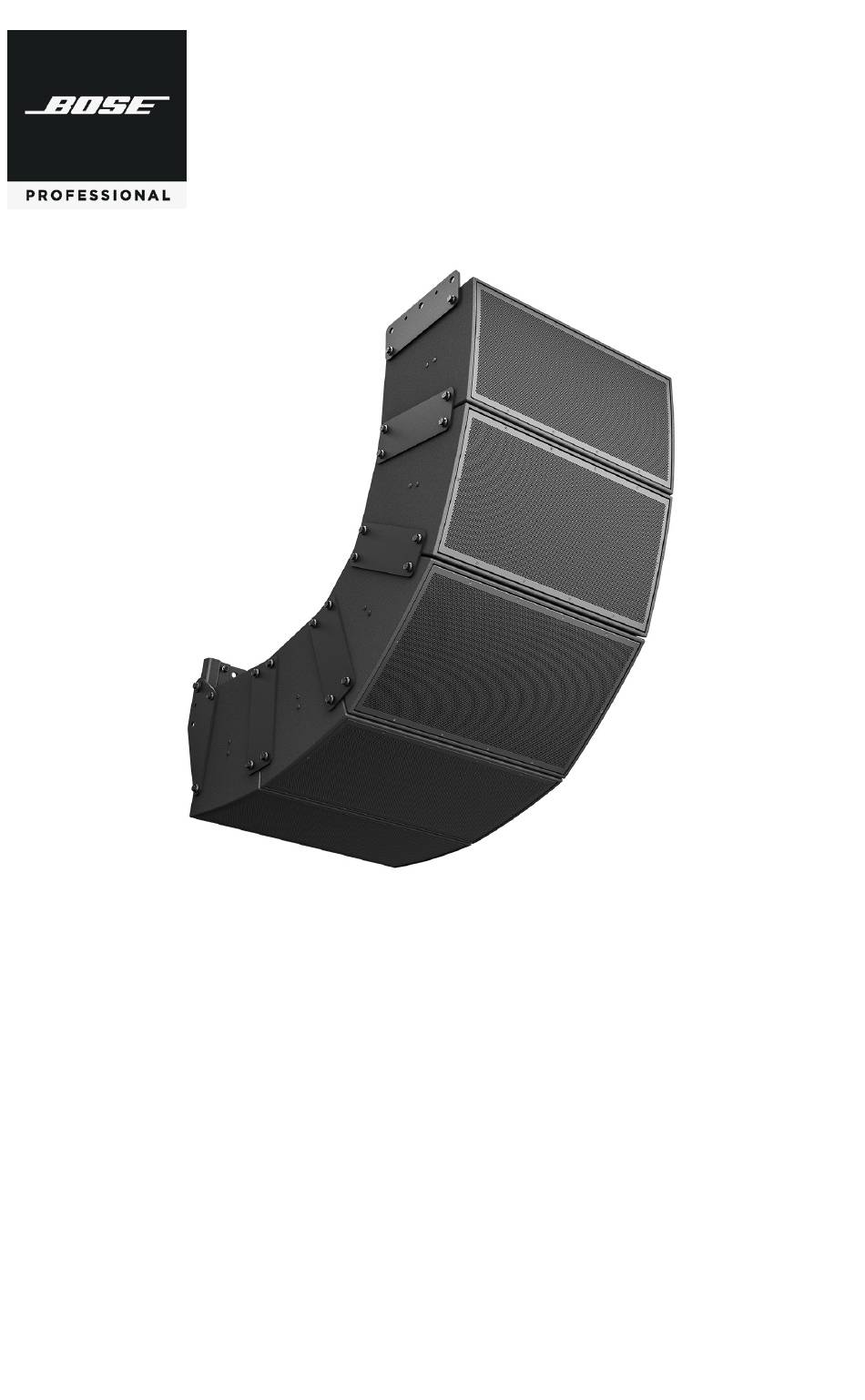

- Seite 1 ArenaMatch DeltaQ Array Module Loudspeakers Array Rigging Accessories Installation Guide Guía de instalación Guide d’installation Installationsanleitung Guida all’installazione Installatiehandleiding...
-
Seite 2: Important Safety Instructions
Plan 9, N.º 353 North Riying Road, Zona franca piloto de China (Shanghái) Mexico Importer: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405- Importador para la UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, 204, Lomas de Chapultepec, 11000 México, D.F. -
Seite 3: Warnhinweise
Importateur pour le Mexique : Bose de México, S. de R.L. de C.V. , Paseo de Importeur aus Mexiko: Bose de México, S. de R.L. de C.V., Paseo de las Palmas las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Pour plus d’informations sur l’importateur et le service : +5255 (5202) 3545... -
Seite 4: Waarschuwingen
Paesi Bassi Importeur in China: Bose Electronics (Shanghai) Company Limited, Part C, Plan Importatore per il Messico: Bose de México, S. de R.L. de C.V. , Paseo de las 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. -
Seite 5: Inhaltsverzeichnis
Contents PRO.BOSE.COM Overview Array Plates (AMAPSHRT) (AMAPLONG) ..............6 Pullback Bracket (AMPULL) ....................6 Module Connect Plate (AMMCPLAT) ................6 Spreader Bar (AMAPSPRD) ....................6 Package Contents ........................7 Specifications Product Dimensions and Working Load Limits ............8 Array Plate Short ......................8 Array Plate Long ......................9 Pullback Bracket ......................10... -
Seite 6: Overview
Overview PRO.BOSE.COM Overview Bose ArenaMatch array rigging accessories are designed for use with ArenaMatch DeltaQ Array loudspeakers (AM10, AM20, and AM40) only. Array Plates (AMAPSHRT) (AMAPLONG) Use the array plates to secure the top module of an array to building structures. All accessory kits are shipped in pairs and includes all required fasteners. -
Seite 7: Package Contents
Overview PRO.BOSE.COM Package Contents Accessory Included Hardware Grade Quantity AMAPSHRT M12 screw 10.9 AMAPLONG M12 screw 10.9 AMPULL M12 screw 10.9 AMMCPLAT M12 screw 10.9 AMASPRD M12 screw 10.9 Fender washer with — plastic liner Spacer — Footnotes 30 millimeters long; with plastic washer and include pre-applied thread-locking compound. -
Seite 8: Specifications
Specifications PRO.BOSE.COM Specifications Product Dimensions and Working Load Limits Array Plate Short Product net weight: 5.3 kg (11.7 lbs) Top View Front View 146 mm 5.7 in 349 mm 126 mm 76 mm 13.7 in 4.9 in 3.0 in ×3 Ø 21 mm 0.8 in... -
Seite 9: Array Plate Long
Specifications PRO.BOSE.COM Array Plate Long Product net weight: 16.8 kg (37.0 lbs) Top View Front View 146 mm 5.7 in Side View 42 mm 1.7 in 603 mm 23.7 in ×14 Ø 21 mm 0.8 in Single Point, 10:1 Working Load Limit WLL = 160 kg (350 lbs) each side Installation Guide •... -
Seite 10: Pullback Bracket
Specifications PRO.BOSE.COM Pullback Bracket Product net weight: 5.1 kg (11.3 lbs) Top View Front View Side View 125 mm 4.9 in 396 mm 150 mm 15.6 in 5.9 in ×2 Ø 21 mm 0.8 in Single Point, 10:1 Working Load Limit WLL = 205 kg (450 lbs) each side Note: Pullback brackets can be used on both the top and bottom of an array. -
Seite 11: Module Connect Plate
Specifications PRO.BOSE.COM Module Connect Plate Product net weight: 4.4 kg (9.7 lbs) Top View Front View Side View 296 mm 11.7 in 347 mm 131 mm 80 mm 13.7 in 5.2 in 3.1 in Single Point, 10:1 Working Load Limit... -
Seite 12: Spreader Bar
Specifications PRO.BOSE.COM Spreader Bar Product net weight: 10.3 kg (22.7 lbs) Top View 47 mm 1.9 in Front View 803 mm 31.6 in 306 mm 12.0 in 25 mm 256 mm 1.0 in 10.1 in 120 mm 4.7 in ×3 Ø 21 mm 0.8 in... -
Seite 13: Installation
Array Rigging ArenaMatch DeltaQ array loudspeakers include four M12 threaded inserts per side, designed to be used with optional ArenaMatch rigging accessories. Additionally, the M10 and M6 inserts on each side are designed to be used with the optional ArenaMatch U-bracket accessory. -
Seite 14: Connecting Array Plates To A Loudspeaker Module
Installation PRO.BOSE.COM Connecting Array Plates to a Loudspeaker Module Remove the plastic plugs from the loudspeaker module on either side of the module. Line up your array plate with the open inserts on either side of the module. Note: If using a long array plate, determine which attachment holes and orientation to use based on your array design. -
Seite 15: Connecting Loudspeaker Modules Using A Module Connect Plate
Installation PRO.BOSE.COM Connecting Loudspeaker Modules Using a Module Connect Plate Remove the plastic plugs from the loudspeaker modules on either side of the modules. Line up your module connect plate with the open inserts on either side of both modules. -
Seite 16: Connecting A Pullback Bracket To A Loudspeaker Module
Installation PRO.BOSE.COM Connecting a Pullback Bracket to a Loudspeaker Module Remove the plastic plugs from the loudspeaker module on either side of the module. Line up your pullback bracket with the open inserts on either side of the module. Note: Determine which orientation to use based on your array design. -
Seite 17: Connecting A Spreader Bar To A Loudspeaker Module
Installation PRO.BOSE.COM Connecting a Spreader Bar to a Loudspeaker Module Confirm the orientation and position of the spreader bar in relation to the array plates based on your array design. Note: The center attachment point is slightly off-center to account for the module center of gravity position. - Seite 20 ©2018 Bose Corporation, All rights reserved. Framingham, MA 01701-9168 USA PRO.BOSE.COM AM829278 Rev. 00 December 2018...
