Limited One Year Warranty
T&S warrants to the original purchaser (other
than for purposes of resale) that such product is
free from defects in material and workmanship
for a period of one (1) year from the date of
purchase. During this one-year warranty period,
if the product is found to be defective, T&S shall,
at its options, repair and/or replace it. To obtain
warranty service, products must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product to T&S
and the return of repaired or replaced product
to the purchaser are the responsibility of the
purchaser. Repair and/or replacement shall be
made within a reasonable time after receipt by
T&S of the returned product. This warranty does
not cover Items which have received secondary
fi nishing or have been altered or modifi ed after
purchase, or for defects caused by physical
abuse to or misuse of the product, or shipment
of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might
arise, is hereby excluded and disclaimed. Any
implied warranties of merchantability or fi tness
for a particular purpose are limited to one year in
duration. Under no circumstances shall T&S be
liable for loss of use or any special consequential
costs, expenses or damages.
Some states do not allow limitations on how
long and implied warranty lasts or the exclusion
or limitation of incidental or consequential dam-
ages, so the above limitations or exclusions
may not apply to you. Specifi c rights under this
warranty and other rights vary from state to state.
P/N: 098-003118-45 Rev.4
Date: 07-28-11
Drawn: TEH
Checked: JRM 08-25-11
Approved: JHB 08-25-11
Installation and
Maintenance
Instructions

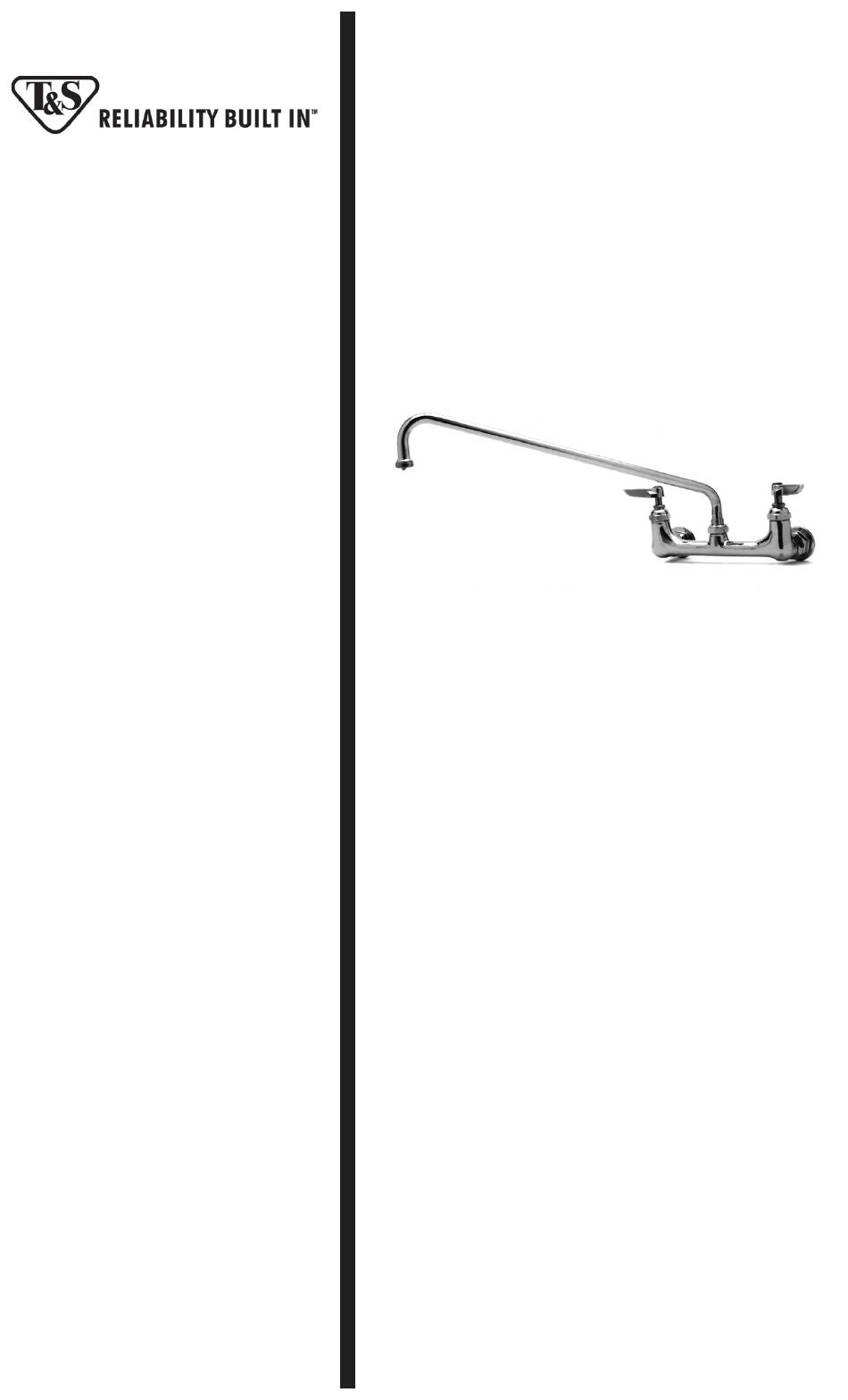

BASE FAUCET
B-0230, B-0231,
B-0232 and B-0330
Deutsch:
Español:
Français:
Installations- und
Wartungsanleitun-
gen
la Instalación y las
Instrucciones de
Mantenimiento
les Instructions
d'Installation et
d'Entretien

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für T&S B-0230

  • Seite 1 T&S of the returned product. This warranty does not cover Items which have received secondary fi nishing or have been altered or modifi ed after B-0230, B-0231, purchase, or for defects caused by physical abuse to or misuse of the product, or shipment of the products.
  • Seite 2: Exploded View

    Exploded View...
  • Seite 3 Part Number Guide Base Faucet Assemblies Asm, Faucet (Swivel) B-0230-LN Asm, Faucet (Rigid) B-0330-LN Faucet Body (Swivel) Faucet Body (Rigid) Asm, Coupling Flange 00AA Washer 001019-45 Asm, Cartridge Left Hand with Spring Checks 002711-40 Right Hand with Spring Checks 002712-40...
  • Seite 4: General Instructions

    General Instructions Nozzle Installation: Note: Nozzles should be installed fi rst. If installing Rigid Gooseneck Enlarged View 1. Apply tefl on tape or pipe joint compound to threaded end of no.9. Faucet Installation: 2. Tighten no.9 fi rmly by hand into no.2.
  • Seite 5: Instrucciones Generales

    Instrucciones Generales Instalación de la boquilla: Nota: Las boquillas deben de ser insta- ladas primero. Instalación de la boquilla rígida de Dibujo Ampliado cuello de cisne 1. Aplique al extremo con rosca de la Instalación de la canilla: parte No.9 cinta para rosca de tubería o compuesto de coyuntura.
  • Seite 6: Instructions Générales

    Instructions Générales L’Installation De L’Ajutage: Noter: Les ajutage devoir être in- staller au début. Si vous installer l’ajutage col-de- cygne vue agrandie 1. Appliquer le ruban en Téfl on ou le composé pour les tuyaux à l’extrémité L’Installation Du Robinet: de N°.9.
  • Seite 7: Allgemeine Anleitungen

    Allgemeine Anleitungen Installation des Schwenkarms: Hinweis: Schwenkarme sind als erstes zu installieren. Falls der feststehende Gußauslauf Vergrößerte Ansicht installiert wird 1. Auf das Gewindeteil von Nr. 9 Tef- Installation des Wasserhahns: lonband oder Rohrkitt auftragen. 6. Wasser abdrehen und Wasserlei- 2.
  • Seite 8 RELATED T&S BRASS PRODUCT LINE B-0352-04 Surgical Sink Faucet with Built-in Stops B-0355-04 Surgical Sink Faucet with Adjustable Inlet and Loose Key Stops T&S BRASS AND BRONZE WORKS, INC. A fi rm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088 T &...
