Specifications

Mechanics

Pan
Speed
Torque
Tilt
Speed
Torque
Maximum load
Protection
Potentiometer

General

Construction
Finish
Mounting pos.
Temperature

Dimensions

Weight
Cable diameter

Electric features

Power Supply

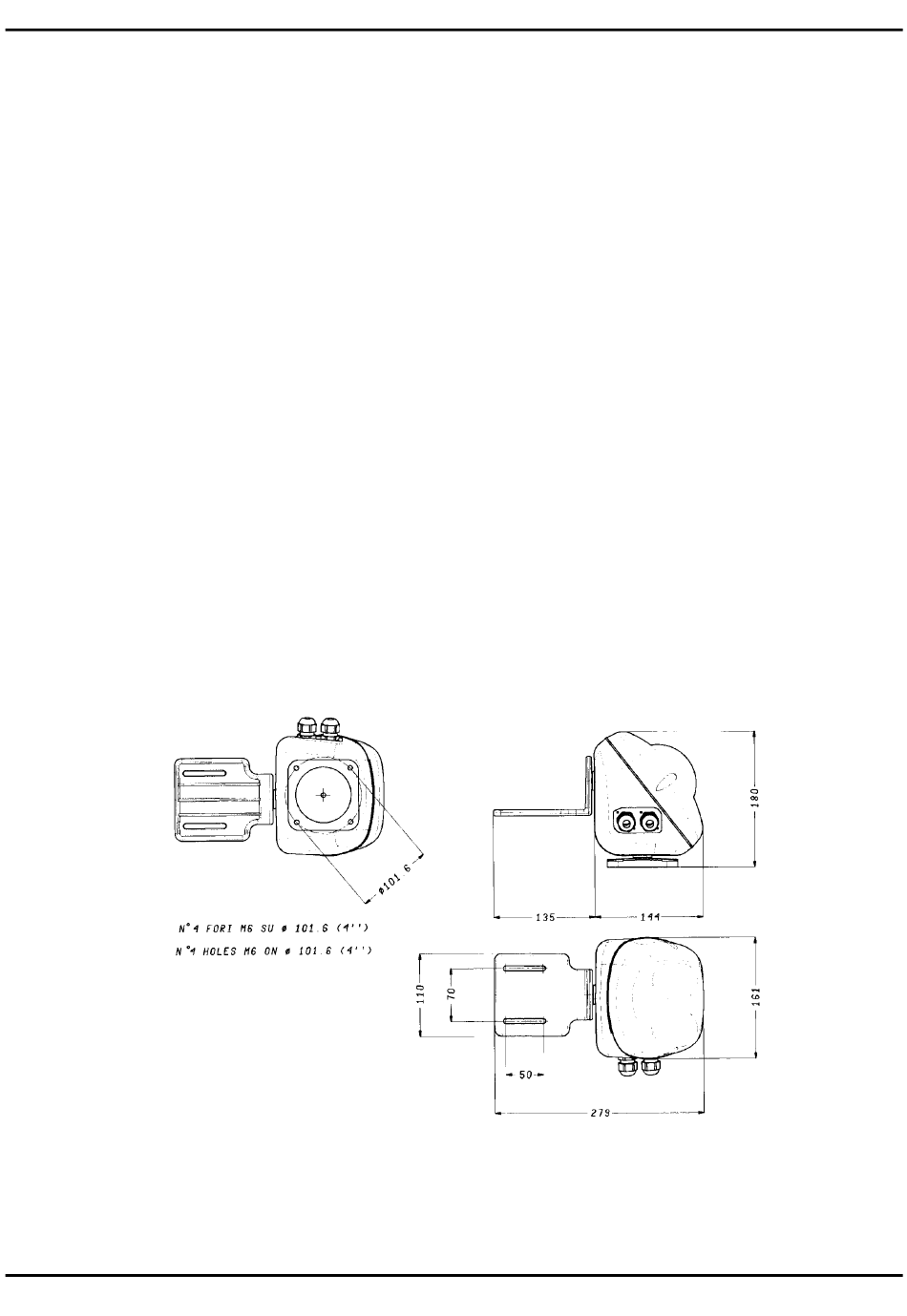

Dimensions
0-345° horizontal plane movement
30° per second
6 Nm at specified voltage
0-360° vertical plane movement
18° per second
6 Nm at specified voltage
12 Kg (26 lb) (balanced)
IP 66
Linear 5Kohm Multiturns (10 turns)
Aluminium die-cast
RAL9002 epoxy coat
normal/reverse
from -20°C to +50°C (from -4°F to 122°F)
180x166x145 mm (
3,5 Kg (8 lb)
10 mm
24V = 11 + 11W
Pag. 9 MNPTH3553803
