Inhaltszusammenfassung für HMM Diagnostics smartLAB scale
Seite 1
Personenwaage Bedienungsanleitung Lesen Sie bitte diese Bedienungsanleitung vor der ersten Inbetriebnahme sorgfältig durch. Aktuelle Information über dieses Gerät erhal- ten Sie unter smartLAB auf www.support.hmm.info HMM Diagnostics GmbH Friedrichstraße 89 D-69221 Dossenheim, Germany www.hmm.info...
Inhalt I. Einleitung Messprinzip II. Ihre smartLAB scale ® Display & Funktionen Set Inhalt Allgemeine Hinweise Sicherheitsinformationen III. Setup & Funktionen Einlegen und Wechsel der Batterien Erstbenutzung der Waage - „Schnelles Wiegen “ Start der Messung Optional: Wiegen auf dem Teppich IV.

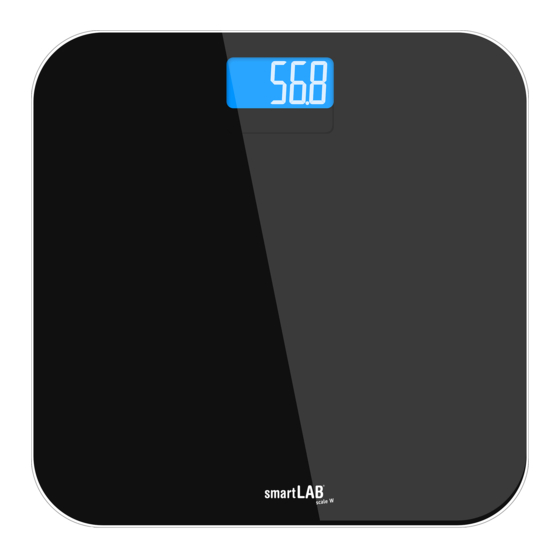

I. Einleitung Vielen Dank, dass Sie sich für die smartLAB® scale Personenwaage entschieden haben. Dieses Produkt ermöglicht Ihnen, Ihr Körpergewicht zu erfassen. Bitte lesen Sie sich vor der ersten Inbetriebnahme die Gebrauchsanweisung gründlich durch und heben Sie diese für den späteren/weiteren Gebrauch auf Messprinzip Ihre smartLAB®...
II. Ihre smartLAB scale ® Allgemeine Informationen Die smartLAB ® scale Personenwaage unterstützt die SENSE ON Technologie. Hier ist es nicht notwendig, die Waage zum Wiegen an und auszuschalten. Sie müssen sich zum Wiegen nur auf die Waage stellen und sie schaltet sich automatisch an.
• Bitte beachten Sie, dass technisch bedingte Messtoleranzen möglich sind da es sich nicht um eine spezielle Waage für den professionell- medizinischen Bedarf handelt • Die smartLAB ® scale Personenwaage erfüllt die EG Richtlinie 89/336 Für mehr Informationen wenden Sie sich an den Hersteller oder den Kundenservice.
Seite 8
Halten Sie Kinder vom Verpackungsmaterial fern – Erstickungsgefahr! Laden Sie die Batterien nicht wieder auf. Zerlegen Sie die Batterien nicht in ihre Bestandteile. Werfen Sie die Batterien nicht ins Feuer. Schließen Sie die Batterien nicht kurz. Vermeiden Sie die Lagerung an folgenden Orten: •...
III. Setup & Bedienungsfunktion Einlegen und Wechsel der Batterien • Bitte öffnen Sie die Abdeckung des Batteriefachs auf der Rückseite des Geräts • Legen Sie 4 AAA Batterien (1,5 V) ein. Bitte achten Sie auf die Polarität • Es erscheinen die Zahlen „8888“ auf der LCD-Anzeige ...
Erstbenutzung der Waage - „Schnelles Wiegen “ Nutzen Sie die smartLAB ® scale Körperwaage um Ihr Gewicht zu bestimmen. Bewegen Sie sich dabei nicht, stehen Sie still und auf beiden Beinen.Stellen Sie sich auf die Waage, welche sich automatisch einschaltet. Die Waage fängt unverzüglich an zu messen, es ertönt ein Peepton beim Beenden der Messung und zeigt schließlich Ihr Körpergewicht auf dem Display an.
das Ende der Messung an. Das Gerät schaltet sich nach einigen Sekunden automatisch aus. Optional: Wiegen auf dem Teppich Sie können die smartLAB ® scale mit den beiliegenden Teppichaufsätzen auch auf einem Teppich verwenden. Hierfür gehen Sie folgendermaßen vor: 1.
IV. Sonstiges Pflege • Von Zeit zu Zeit sollte das Gerät mit einem feuchten Tuch gereinigt werden. Benutzen Sie keine scharfen Reinigungsmittel und halten Sie das Gerät niemals unter fließendes Wasser. • Schützen Sie das Gerät vor Stößen, Feuchtigkeit, Staub, Chemikalien oder starken Temperaturschwankungen.
Seite 13
Fehlermeldungen während des Messvorganges Fehler Grund Abhilfe Abweichende Falsche Haltung Bitte wiederholen Sie die Mes- Messergebnisse: sung. Stellen Sie sich auf die -Zu hoch, oder Plattform und stehen Sie still. -Zu niedrig, oder Das Gerät liegt entweder Bitte stellen Sie die Waage auf -Enorme Abwei- auf einem weichen Teppich einen ebenen flachen Boden...
Erläuterung der Symbole Die Warnzeichen und Symbole sind unerlässlich, um die richtige und sichere Verwendung dieses Produkts zu gewährleisten um Sie und andere Verletzungen zu schützen Wir bitten Sie die Bedeutung der Warnungszeichen und Symbole, die Sie auf diesem Etikett und in der Bedienungsanleitung finden, folgendermaßen anzuwenden: Symbol für „Die Symbol für “Hersteller”...
Verwendung gefährlicher Substanzen in elektrischen und elektronischen Geräten (RoHS), sowie seiner Abwandlungen. Garantie HMM Diagnostics GmbH stellt an seine Produkte hohe Qualitätsanforderungen. Aus diesem Grunde gewährt HMM Diagnostics GmbH beim Kauf dieses smartLAB Produktes 2 Jahre Garantie. Sie können die Garantiezeit um ®...
Seite 17
Bathroom Scale User Manual Please read the user manual carefully before the first use. Current information about this device, visit smartLAB on www.support.hmm.info HMM Diagnostics GmbH Friedrichstraße 89 D-69221 Dossenheim, Germany www.hmm.info...
Seite 19
Content I. Introduction Principle of Measurement II. Your smartLAB scale W ® Display & functions Content General Information Security Information III. Setup & Operating functions Inserting and Changing the batteries Initial start - „quick weighing “ Start Measurement Optional: Weighing on a carpet IV.
I. Introduction Thank you for choosing our smartLAB scale Bathroom Scale. This product ® enables you to measure your body weight. Please read the instructions carefully before you first use the scale and keep the instructions for a future use. Principle of measurement Your smartLAB ®...
II. Your smartLAB scale ® General Instructions The smartLAB ® scale Bathroom Scale applies SENSE ON technology. It’s not necessary to turn on or turn off the scale, just stand on the scale for measu- rement. It will turn on automatically when stepping on. Display &...
• The device is for your own use only and not for medical or commercial use. • Please note that technical related measuring tolerances are possible since the scale is not especially made for professional medical use. • The smartLAB scale Bathroom Scale corresponds to the EC directive ®...
III. Setup & Operating functions Inserting and changing the batteries • Please open the cover of the battery case at the back of the device. • Insert 4 AAA batteries (1,5 V). Please pay attention to the polarity. • The digits “8888” will appear on the LCD Display ...
Initial Start - „quick weighing“ Use the smartLAB ® scale Bathroom Scale to measure your weight. Do not move, stand still and stand on both legs. The scale will turn on automatically when stepping on it. The scale starts measuring immediately, a beep tells you the end of the measurement and finally shows your body weight on the display.
Optional: Weighing on a carpet You can use the smartLAB ® scale with the extension feet on a carpet. For this please follow these steps: 1. Remove the non-slip pads from 2. Fit the extension feet firmly onto the scales feet the scales feet.
IV. Miscellaneous Maintenance • Please clean your device regularly with a wet soft cloth. Use a dry soft cloth to dry up the device. Do not use caustic cleaning solutions. Do not put the device under fluent water. • Protect the device from impacts, humidity, dust, chemicals or fluctuations of temperature.
Seite 28
When Measuring ... Problem Root Cause Solution Abnormal measur- Incorrect posture Please step on the platform ing results: and stand still. - Too high, or - Too low, or The device is located on Please place the device on a - Huge difference a soft ground such as a flat, hard surface.
Symbol Meaning The warning signs and symbols are essential to ensure your correct and safe use of this product and protect you and others from injury. Please kindly find the meanings of the warning signs and symbols, which you may encounter in the label and user manual, as follows: Symbol for “THE Symbol...
(RoHS) and its variations. Warranty HMM Diagnostics GmbH products need to fulfill high quality requirements. Because of this reason, HMM Diagnostics GmbH gives a 2-year warranty by purchasing this smartLAB product. You can even extend the warranty ®...
Seite 31
Pèse-personne Manuel d’utilisation S’il vous plait, veuillez lire attentivement ce manuel d’utilisation avant votre première uti- lisation de l’appareil Les informations actuelles sur cet appareil, visitez smartLAB sur www.support.hmm.info HMM Diagnostics GmbH Friedrichstraße 89 D-69221 Dossenheim, Germany www.hmm.info...
Seite 32
Sommaire Introduction Principe de mesure Votre pèse-personne smartLAB® scale Affichage & fonctions Contenu Informations générales Règles de sécurité III. Configuration et utilisation des fonctions Mise en place et remplacement des piles Commencez l’utilisation – pesage rapide Débuter la pesée Option: se peser sur un tapis Divers Maintenance Problèmes...
I. Introduction Merci d‘avoir choisi notre pèse-personne smartLAB® scale. Ce produit vous permet de mesurer votre poids. S’il vous plaît merci de lire attentivement ce manuel d’utilisation avant votre première utilisation de notre pèse- personne, et veuillez garder ce document à portée de main. Principe de mesure Votre pèse-personne smartLAB®...
II. Votre pèse-personne smartLAB® scale Instructions générales Le pèse-personne smartLAB® scale utilise la technologie SENSE ON. Il n’est pas nécessaire d’allumer ou d’éteindre systématiquement l’appareil, il suf- fit de monter dessus. Il se mettra en marche automatiquement lorsque vous marcherez dessus. Affichage &...
Spécifications Poids: 1980 g (sans piles) Appareil: pèse-personne smartLAB® A utiliser dans une pièce à tempéra- scale ture entre 0°C - 20°C Capacité max: 150 kg / 330 lb A stocker dans une pièce à tempéra- Unités: kg / lb (par 100 g / 0,2 lb) ture entre -20°C –...
• L’appareil est pour votre propre usage et non pour usage médical ou commercial. • S’il vous plaît, veuillez noter que les données peuvent ne pas être extrêmement précises, car le pèse-personne n’est pas spécialement conçu pour un usage médical professionnel. Le pèse-personne smartLAB®...
III. Configuration et utilisation des fonctions Insertion et changement des piles • Veuillez ouvrir le couvercle du boîtier situé à l’arrière de l’appareil • Insérez 4 piles AAA (1,5 V). Veuillez faire attention aux polarités. • chiffre “8888” devrait apparaître l’écran ...
Commencez l’utilisation – “pesage rapide“ Utilisez le pèse-personne smartLAB® scale pour mesurer votre poids. Ne bougez pas, et gardez vos deux jambes bien tendues. Le pèse-personne s’allume automatiquement quand vous montez dessus. Le pèse-personne vous pèse directement, et après quelques seconds, un bip retentit avant d’afficher votre poids.
Option: se peser sur un tapis Vous pouvez utiliser le pèse-personne smartLAB® scale avec les pieds spéciaux pour tapis. Pour ça, veuillez suivre les étapes suivantes : 1. Retirez les pieds antidérapants 2. Fixez les extensions spéciales du pèse-personne. Pour tapis. C’est bon.
IV. Divers Entretien • Nettoyez régulièrement votre appareil avec un chiffon doux et humide. Épongez l’appareil avec un tissu doux et sec. N’utilisez pas de produits chimiques doux et humides. Ne mettez pas l’appareil sous l’eau. • Protégez l’appareil des impacts, de l’humidité, de la poussière, des produits chimiques ou des changements de température.
Seite 41
Pendant la pesée… Problème Cause probable Solution Résultats de Position incorrecte Montez sur la plate-forme et mesures anormales: restez immobile trop élevé ou trop Le dispositif est situé sur Placez l’appareil faible. un terrain mou comme un surface plane et dure. Énorme différence tapis ou sur une surface entre deux mesures...
Signification des symboles Les signes et symboles d’avertissement sont essentiaux à votre utilisation de l’appareil pour vous protéger des blessures. Veuillez bien prendre note des significations des symboles, que vous pouvez rencontrer dans ce manuel d’utilisation: Symbole pour Symbole pour ”FARICANT” “L’AVERTISSEMENT DOIT ÊTRE LU”...
Garantie Les produits HMM GmbH ont besoin de vous pour répondre aux exigences de haute qualité. Pour cette raison, HMM Diagnostics GmbH offre une garantie de 2 ans pour l’achat de ce produit smartLAB®. Vous pouvez même prolonger la garantie de 3 à 5 ans sans rémunération supplémentaire lorsque vous inscrivez votre produit.
Seite 45
Bilancia da bagno Manuale d’uso Per favore leggi il manuale attentamente pri- ma dell’utilizzo. Informazioni aggiornate su questo dispositivo, visitare il smartLAB www.support.hmm.info HMM Diagnostics GmbH Friedrichstraße 89 D-69221 Dossenheim, Germany www.hmm.info...
Seite 46
Contenuto I. Introduzione II. La tua Bilancia smartLAB scale Istruzioni generali Display e funzionalità Specifiche Contenuto Informazioni generali Informazioni di sicurezza III. Impostazioni e funzionalità Inserire e cambiare le batterie Primo utilizzo, “pesatura veloce” Inizio della misurazione Pesatura quotidiana Optional: pesarsi sul tappeto IV.
I. Introduzione Grazie per aver scelto la bilancia da bagno smartLAB® . Questo scale prodotto ti consente di misurare il tuo peso corporeo. Per favore leggi le istruzioni attentamente prima di utilizzarla e conservale per i futuri usi. Principi della misurazione La Bilancia da bagno smartLAB®...
II. La tua Bilancia smartLAB scale Istruzioni generali La bilancia da bagno smartLAB® scale integra la tecnologia SENSE ON. Non è necessario accenderla e spegnerla, sarà sufficiente salire per iniziare la pesatura. Si accenderà in automatico una volta rilevata la persona.
Profili utente: 8 “ Batterie: 4 x AAA da 1.5V Misure (LxWxH): 321 x 321x 23.5mm Contenuto 1 Bilancia da bagno smartLAB scale 1 Manuale d’uso 4 batterie da 1.5V di tipo AAA 4 estensioni de piedini su tappeto Informazioni generali •...
• Il dispositivo è concepito per il semplice uso personale, non per scopi medici o commerciali • Per favore nota che alcune tolleranze di misurazione possono essere possibili in quanto la bilancia non è concepita per un uso professionale medico. La bilancia da bagno smartLAB®...
III. Impostazioni e funzionalità Inserire e cambiare le batterie • Apri il vano batterie situato sul retro del dispositivo. • Inserisci 4 batterie di tipo AAA (1,5V). Per favore fa attenzione alla polarità. • Le cifre “8888” appariranno sul display LCD ...
Per garantire una corretta misurazione dovresti calibrare la bilancia dopo ogni spostamento. E’ sufficiente fare una lieve pressione e aspettare finché non vengono mostrate le cifre “0.0kg”. Primo utilizzo, “pesatura veloce” Usa la smartLAB® scale per pesarti. Non muoverti, stai dritto su entrambe le gambe.
Stai dritto e mantieni il contatto con la bilancia funchè il display LCD non mostrerà il peso e l’unità di misura non smetterà di lampeggiare. Un beep ti avviserà quando la pesatura è terminata. Optional: pesarsi sul tappeto Puoi usare la bilancia smartLAB® scale Con le estensioni per i piedini su di un tappeto.
IV. Miscellaneo Manutenzione • Per favore pulisci la bilancia regolarmente con un panno umido. Usa un panno asciutto per asciugare la bilancia. Non usare soluzione a base caustica. Non mettere il prodotto sotto acqua corrente. • Proteggi il dispositivo da impatti, umidità, polvere, agenti chimici o sbalzi di temperatura.
Seite 55
Durante la misurazione ... Problema Causa Soluzione Risultati di misura Postura non corretta Sali sulla pedana e rimani anormali: dritto. -Valori troppo eleva- Dispositivo posizionato Posiziona la bilancia in una ti, o troppo bassi, in una superficie soffice, superficie dura e piana. o troppa differenza come un tappeto, OPPURE tra due pesature...
Significato dei simboli I segni ei simboli di avvertimento sono essenziali per garantire l’utilizzo corretto e sicuro di questo prodotto e voi e gli altri proteggere da un infortunio. Si prega gentilmente di trovare il significato dei segnali di pericolo e simboli che si possono incontrare in etichetta e manuale d’uso, come segue: Simbolo per: “Le Simbolo...
Declaration of ConRegolarità e note di sicurezza Stato di sicurezza Questo prodotto è stato verificato in modo da essere conforme alle certificazioni di sicurezza in accordo agli standard EN: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 WEEE NOTE La direttiva WEEE (Smaltimento di Materiale Elettrico ed Elettronico), che è stata posta a vigore come legge europea il 13 Febbraio 2003, ha contribuito ad un importante cambiamento nello smaltimento dei prodotti elettrici.
Garanzia I prodotti HMM Diagnostics GmbH, sono costruiti con elevati standard di qualità. Per questa ragione, HMM Diagnostics GmbH offre una ga- ranzia di 2 anni con l’acquisto dei prodotti smartLAB®. Puoi anche estendere la garanzia dai 3 ai 5 anni, senza pagamenti ulteriori, reg- istrando il tuo prodotto.
Seite 59
Báscula de baño Manual de usuario Por favor, lea cuidadosamente el manual ants del primer uso La información actual acerca de este dispositivo, visite el smartLAB www.support.hmm.info HMM Diagnostics GmbH Friedrichstraße 89 D-69221 Dossenheim, Germany www.hmm.info...
Seite 60
Contenido I. Introduction II. Tu smartLAB® scale Instrucciones generales Pantalla y funciones Especificaciones Contenido Información general Información de seguridad III. Instalación y funciones de operación Insertando y cambiando las pilas Comienzo inicial - „pesaje rápido“ Comenzar la medición Medición diaria Opcional: pesando en una alfombra IV.
I. Introduction Gracias por elegir la báscula de baño smartLAB® scale. Este producto te permite medir el peso de tu cuerpo. Por favor, lea las instrucciones cuidadosamente antes de su primer uso y manténgalo para un uso futuro. Principio de medida Tu báscula de baño smartLAB®...
II. Tu smartLAB® scale Instrucciones generales La báscula de baño smartLAB® scale usa tecnología SENSE ON. No es necesario encender o apagar la báscula, solo súbete para realizar la medición. Se encenderá cuando te subas. Pantalla y funciones Pantalla LCD Sensor Botón de unidad Compartimento de las pilas...
Especificaciones Peso: 1980 g (sin pilas) Temperatura de operación: 0°C - 40°C Dispositivo: smartLAB® scale Temperatura de almacenamiento: -20°C Capacidad máx.: 150 kg / 330 lb - 60°C Unidades: kg / lb (in 100 g / 0,2 lb pa- Símbolo cuando está demasiado cali- sos) ente: „----“...
• El dispositivo es para su uso personal y no para médicos o uso comercial. • Tenga en cuenta que las tolerancias de medición técnicas son posibles ya que la balanza no está hecha especialmente para uso médico profesional. La báscula de baño smartLAB® scale cumple con la directiva EC 89/336. •...
III. Instalación y funciones de operación Insertando y cambiando las pilas • Por favor, abre la cubierta de las pilas en la parte trasera del disposi- tivo. • Inserte 4 pilas AAA (1,5 V). Por favor, preste atención a la polaridad. •...
Comienzo inicial - „pesaje rápido“ Use la báscula de baño smartLAB® scale para medir su peso. No se mueva, póngase de pie sobre las dos piernas. La báscula iniciará la medición inmediatamente, un beep te indica el fin de la medición y finamente muestra el peso corporal en la pantalla.
Súbase y mantenga contacto completo con la báscula hasta que la pantalla LCD muestre el peso y la unidad deje de parpadear. Un beep te permitirá saber que el peso ha terminado. La báscula se apagará automáticamente después de unos segundos. ...
IV. Miscelanea Mantenimiento • Por favor, limpiar su aparato regularmente con un paño húmedo. No utilizar solucione de limpieza cáustica. No coloque el dispositivo bajo el agua. • Protege el dispositivo contra impactos, humedad, polvo, productos químicos o las fluctuaciones de temperatura. No almacenar cerca de fuentes de calor como hornos o instalaciones de calefacción.
Seite 69
Durante la medición ... Problema Causa Solución Resultados anor- Postura incorrecta Por favor, póngase de pie cor- males: rectamente • Demasiado El dispositivo se encuentra Por favor, posicione la báscula altos, o en zona blanda como una en una superficie dura y plana •...
ignificado de símbolos Los símbolos de atención son esenciales para asegurar el correcto y seguro uso de este producto y te protege a ti y a otros de daños. Por favor, busque el significado de los signos y símbolos, que puede encontrar en las etiquetas y en el manual de usuario: Símbolo para “La Símbolo para “Fabricante”...
Garantía HMM Diagnostics GmbH pone énfasis en un alto estándar de calidad. Por esta razón HMM Diagnostics GmbH ofrece una garantía de 2 años. Usted puede extender su garantía a partir de 3 hasta 5 años al inscribir su producto en HMM Diagnostics GmbH. Esta extensión o su garantía es gratuita.
Seite 72
Manufacturer: HMM Diagnostics GmbH Friedrichstr. 89 D-69221 Dossenheim, Germany mail: info@hmm.info www.hmm.info Weitere Informationen zu den smartLAB Produkten / ® More information on our smartLAB products / ® Plus d‘informations sur nos produits smartLAB® / Maggiori informazioni sui nostri prodotti smartLAB®/ Más información sobre nuestros productos smartLAB®:...
