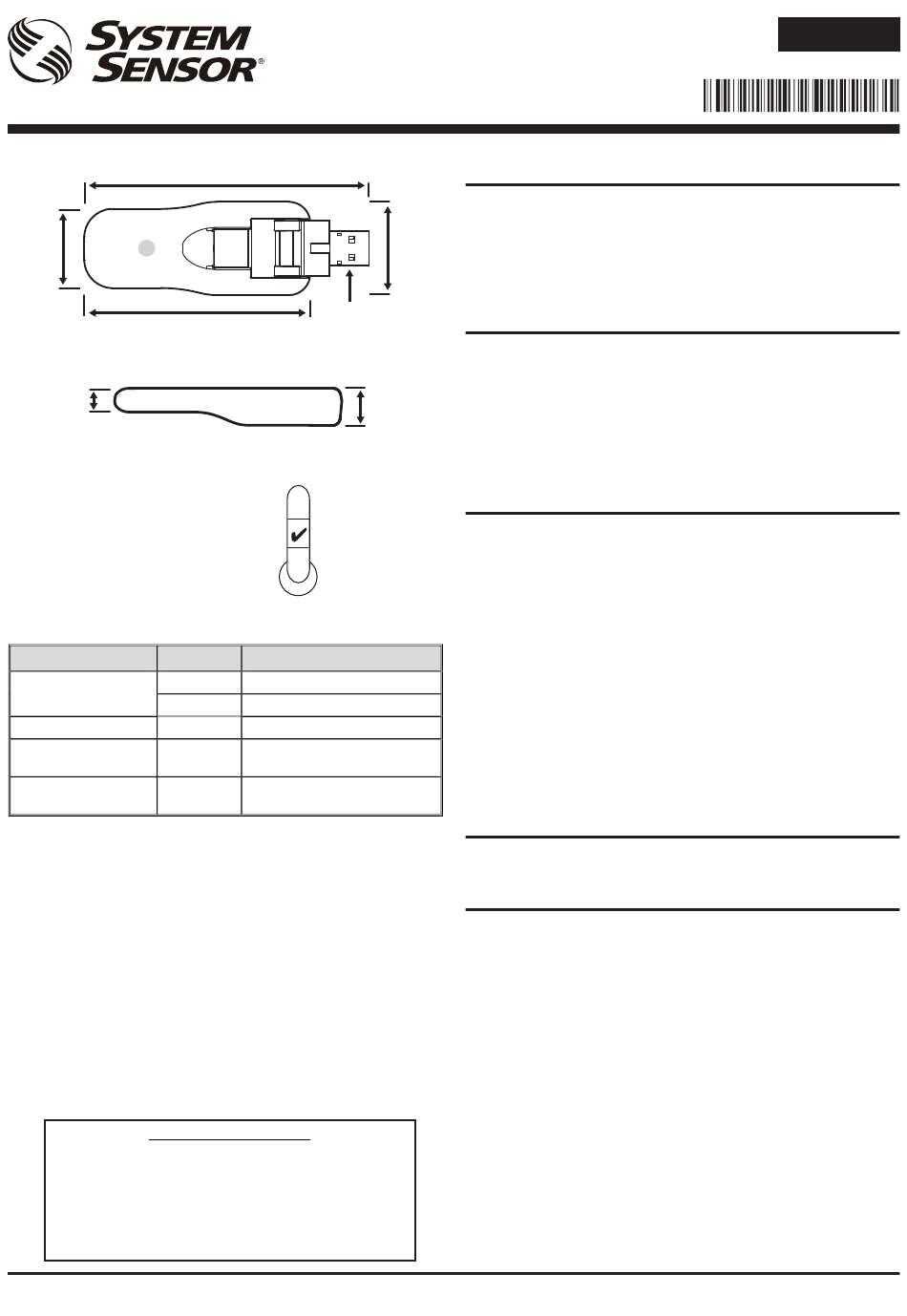

System Sensor M200WC-RF Installations- Und Gebrauchsanleitung

LED
26 mm
(Hidden)
76 mm
8.4 mm
M200WC-RF interface status LED
Status LED State
Green pulse Device OK and connected
Power-on initialisation
Amber ON
Fault Amber blink Device has an internal trouble
Serial (USB)
Green blink
communication
RF communication Blue blink
Patents Pending
EC Declaration of Conformity
In accordance with EN60950 and 1999/5/EC R&TTE Directive
This product complies with the following Directive(s):
2006/95/EC Low Voltage
2004/108/EC Electromagnetic Compatibility
The full DoC can be obtained from System Sensor Europe
RADIO SYSTEM USB INTERFACE
INSTALLATION AND USER INSTRUCTIONS
96 mm
USB Connector
- Type A
13 mm
50°C
0°C
Meaning
Device OK but not recognized
Interface is receiving data from
the PC application
Interface is receiving data from
an RF device
Pittway Tecnologica S.r.l. Via Caboto 19/3, 34147 TRIESTE, Italy
M200WC-RF
DESCRIPTION
The M200WC-RF is an interface that connects to a PC through
a USB port and allows communication with System Sensor 200
Series Commercial RF devices. The M200WC-RF is powered
31 mm
directly by the USB port.
This radio device complies with the R&TTE Directive and operates
in accordance with E.T.S.I. EN 300-220-1 specifications.
SPECIFICATIONS
Supply Voltage:
Supply Current:
USB standard:
USB connector:
Radio Frequency:
RF Output Power:
Range:
Relative Humidity:
INSTALLATION
The M200WC-RF has an adjustable USB connector in order to
maximize the RF coupling with radio communicating devices, and
to change its profile when connected to a portable PC.
Do not connect the M200WC-RF interface until the correct
drivers have been installed on the target PC.
Download the latest version of the AgileIQ
(with the correct interface drivers) from a trusted source - see the
Radio Programming and Commissioning Manual for the installation
procedure.
Only plug the RF interface into a spare USB port on the PC
when requested.
Note that when the interface is attached, Windows may take a
number of seconds to recognize the new hardware correctly;
always wait a short period for the LED to change from yellow
to green before proceeding with any other operation.
LED INDICATORS
The interface is equipped with an RGB LED, giving an indication of
power and communication (both RF and USB) status (see table).
PROGRAMMING
Used in conjunction with the PC application software M200SCT-RF,
the RF interface is used to program and communicate with System
Sensor 200 Series RF fire detection devices. For information on
setting-up, commissioning and monitoring an RF mesh network,
see the Radio Programming and Commissioning Manual - ref.
D200-306-00.)
NOTE: Do not run more than one interface at a time to
commission devices or carry out a site survey in an area.
I 56- 4157- 001
4.3 – 5.5V Direct Current (DC)
33mA typical @ 5VDC
USB 2.0 (full speed)
Type A
865-870 MHz;
13 dBm (@ 5VDC)
130m (typ. in free air)
10% to 93% (non-condensing)
radio interface software
®
E N G L I S H
I56-4157-001
