32
Connect Devices
1.
For opening the CAGE CLAMP
above the connection.
2.
Insert the conductor into the corresponding connection opening.
3.
For closing the CAGE CLAMP
now clamped firmly in place.

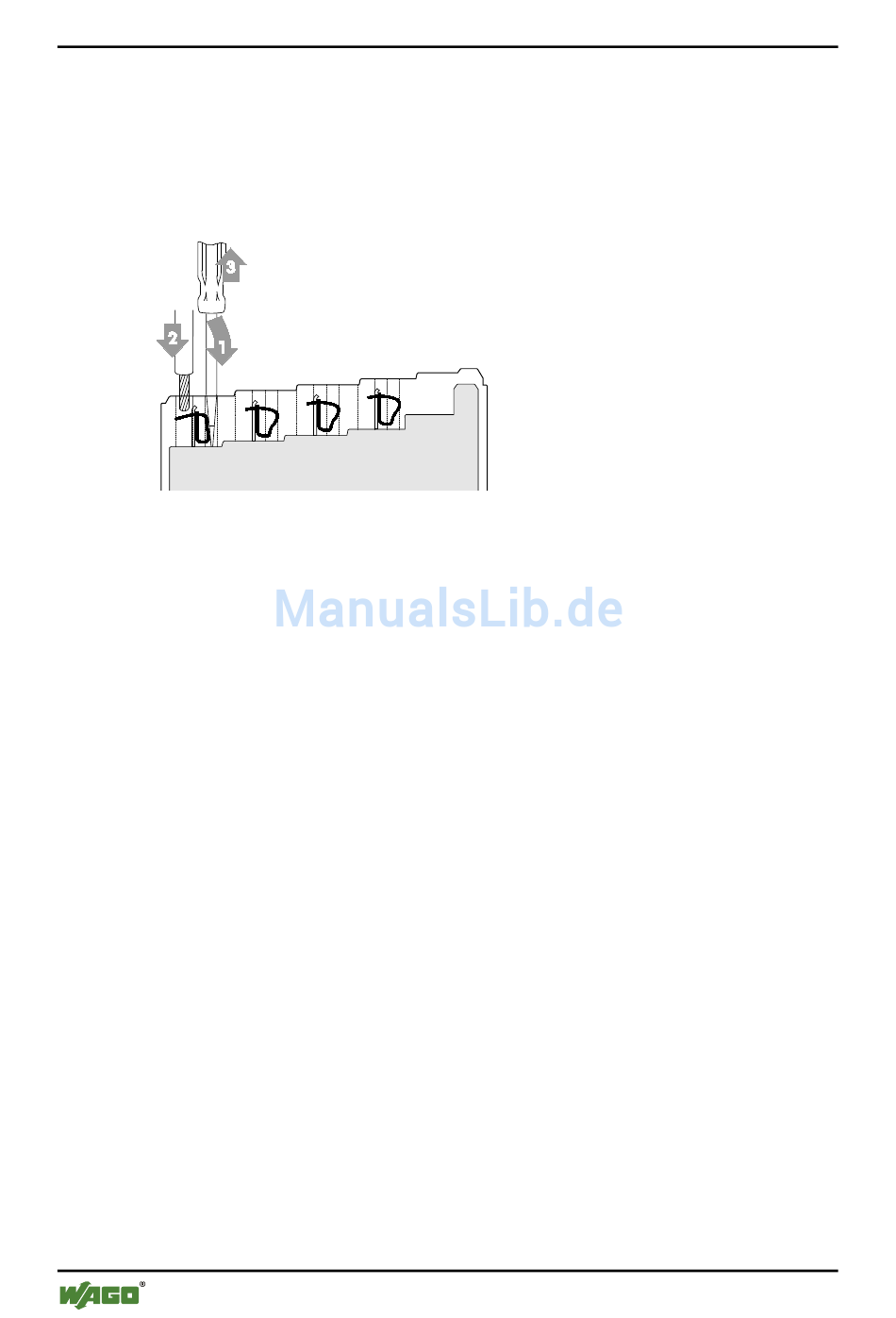

Figure 10: Connecting a Conductor to a CAGE CLAMP
Pos: 29 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.docx @ 21810 @ @ 1
®
insert the actuating tool into the opening
®
simply remove the tool. The conductor is
®
WAGO-I/O-SYSTEM 750
750-555 4AO 0-20mA
Manual
Version 1.2.0
