AXTON C402 Bedienungsanleitung Seite 29

C202 402 502 (D+E) 30.04.2001 10:14 Uhr
CD/MD CHANGER
L R
PRE-OUT
HEAD-UNIT
Main fuse
30-60 A
BATTERY
Please note!
The AXTON C202 and C402 amplifier models may be used in FULLRANGE, HIGHPASS or LOWPASS mode.
In stereo operation speaker impedance may be 2-4 Ohms.
In bridged mono operation minimum speaker impedance is 4 Ohms.
For mono operation/bridged output both inputs (L&R) must be used, still
(if necessary use Y-adaptors)!
A main fuse (not included) of appropriate amperage must be installed within 30 cm of the car battery!
CD/MD CHANGER
INPUT L or MONO
(Fullrange)
L R
PRE-OUT
HEAD-UNIT
INPUT R or MONO
(Fullrange)
Main fuse
30-60 A
BATTERY
Seite 29
F

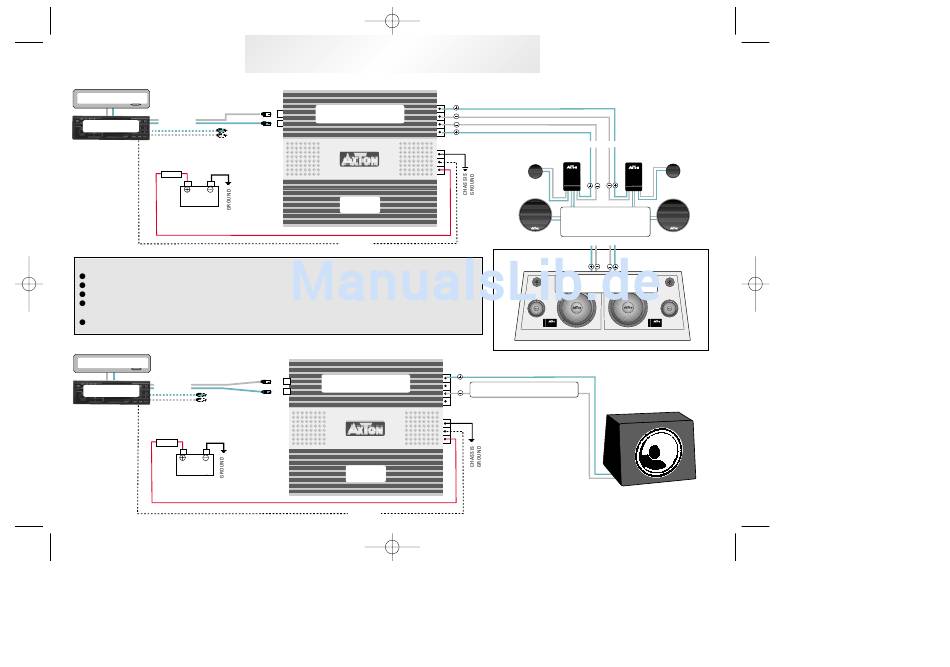

CONNECTING DIAGRAM 1+2 C202 / C402
L
C202 / C402
INPUT
R
STEREO
REMOTE
L
C202 / C402
INPUT
R
MONO
REMOTE
Stereo/Mono Operation
Stereo-Operation
PASSIVE PASSIVE
X-OVER X-OVER
TWEETER
BASS/
FULLRANGE
or
MIDRANGE
HIGHPASS Mode
FULLRANGE Mode
STEREO SOUNDBOARD SYSTEM
Mono-Operation
LOWPASS BRIDGED
Mono SUBWOOFER min. 4 Ohms!
TWEETER
BASS/
MIDRANGE
29
