LaserLiner MultiMeter XP Bedienungsanleitung Seite 19

14
13
RANGE MIN
12 REL
MAX
AC+DC
AVG
11
MODE
V
10A
Hz
mA
µA
10
9
10A
30 sec MAX CAT IV 600V
every 15 min CAT III 1000V
µA
8 FUSED
mA
MAX 800mA
MultiMeter XP
Auto power off
Low Z voltage measurement
milli (10-3) (volt, ampere)
Volt (voltage)
micro (10 )
-6
(ampere, capacitance)
Ampere (amperage)
nano (10 ) (capacitance)
-9
Farad (capacitance)
Mega (Ohm)
Kilo (Ohm)
Ohm (resistance)
1
2
PEAK
3
4
HOLD
%
CAP
°C 5
°F
Low
Z
6
V Hz
%
CAP
°C °F
7
COM
15
16
MultiMeter XP

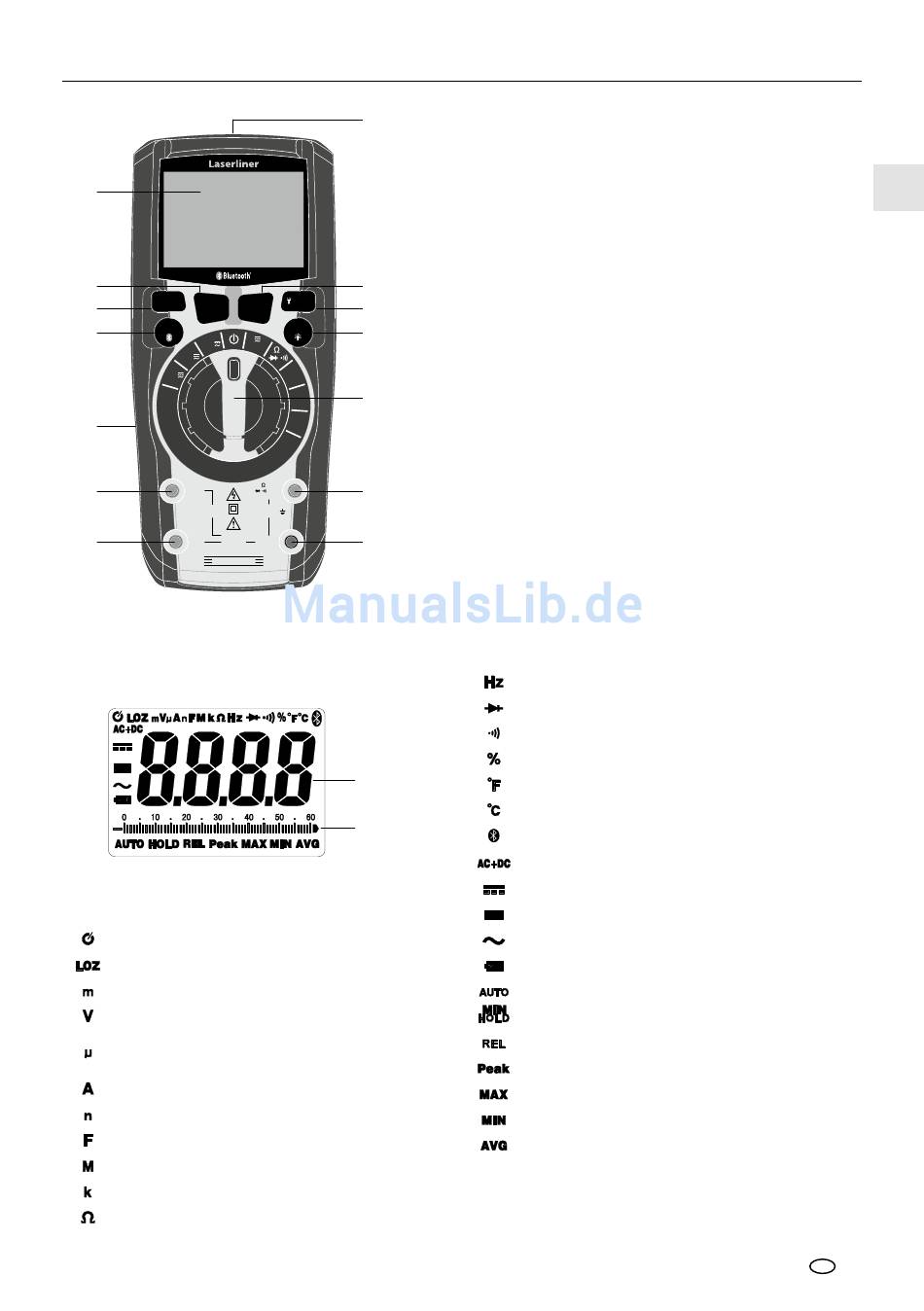

1 Flashlight
2 MIN-/MAX-/AVG measurement
3 PEAK function (voltage peak function),
ON/OFF flashlight
4
Hold current measured value,
LCD lighting ON/OFF
5 Rotary switch to set the measuring function
6 Red input socket (+)
7 Black COM socket (–)
8 µA / mA Red input socket (+)
9 10A Red input socket (+)
10 Battery compartment at rear of device
11 Switch over measuring function,
Bluetooth ON/OFF
12
Select range manually
13 Comparison measurement (REL),
AC+DC function
14 LCD
Hertz (frequency)
Diode test
Continuity test
Percentage (duty factor)
° Fahrenheit
° Celsius
Bluetooth active
AC+DC function
DC measurements
Negative measured value
AC measurements
Low battery charge
Automatic range selection
Current measured value is held
Comparison measurement
PEAK function (voltage peak function)
Maximum value
Minimum value
Average value
15 Measured value display
16 Bar graph display
