AXIS P33/-V Network Camera Series

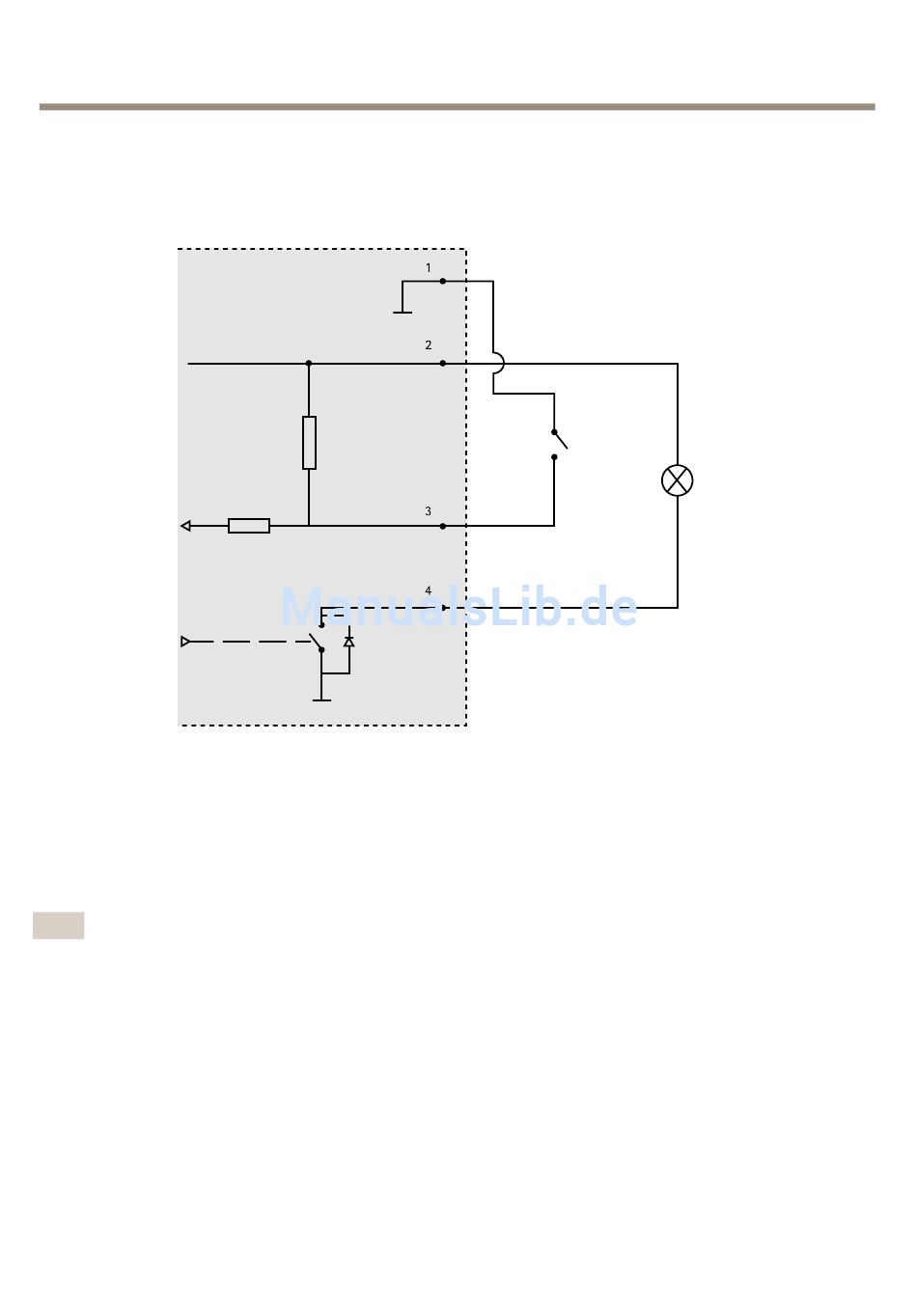

Connection Diagrams

I/O Connector
1
0 V DC (-)
2
DC output 3.3 V, max 50 mA
3
Digital input 0 to max 40 V DC
4
Digital output 0 to max 40 V DC, open drain, 100 mA

Install the Hardware

Note
• This Axis product can be mounted with the cables routed through or along the wall.
• This product can be fitted with a metal conduit for protecting the cabling when the
cables are routed along the wall.
16
