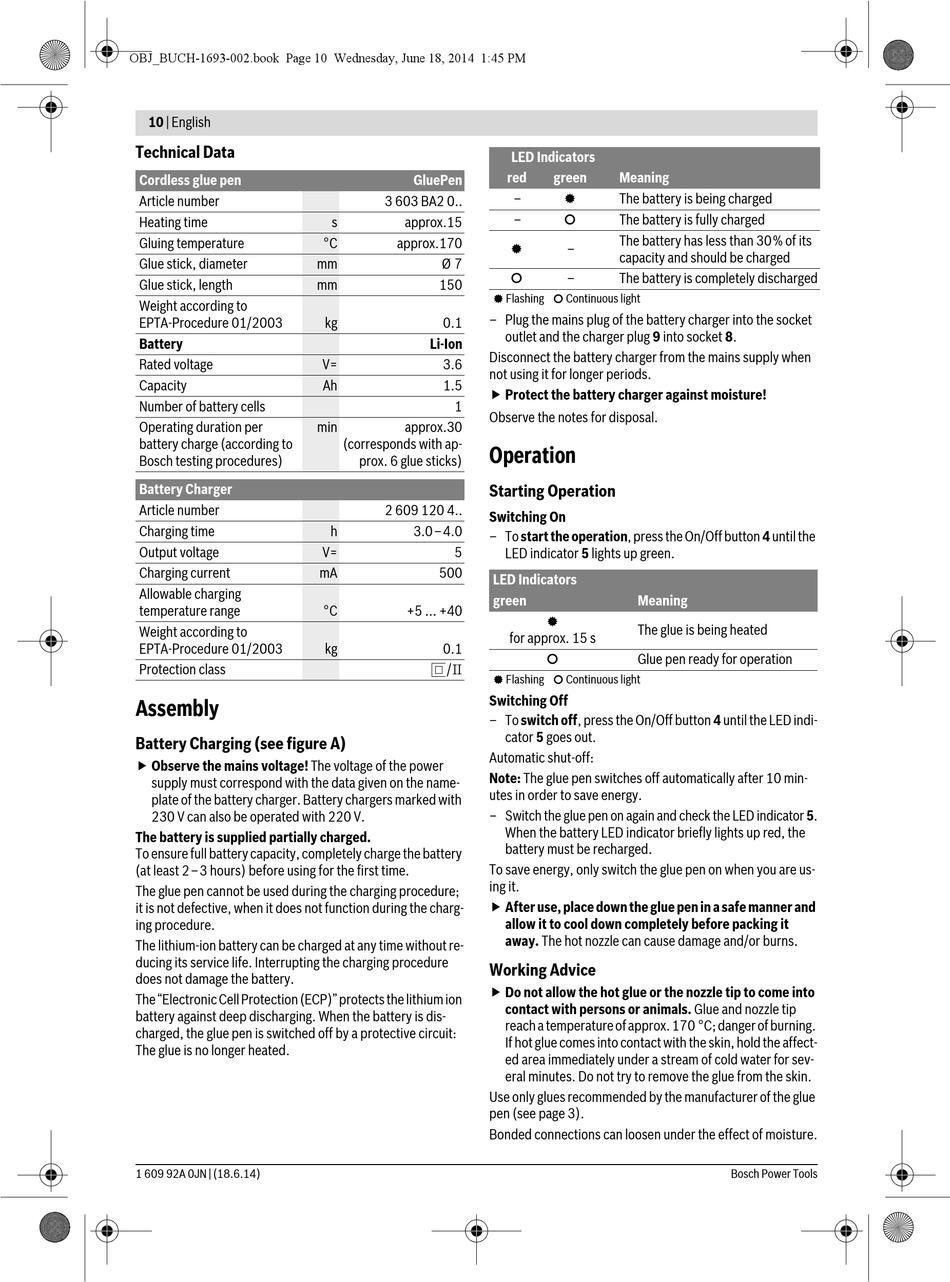

10 | English

Technical Data

Cordless glue pen
Article number
Heating time
Gluing temperature
Glue stick, diameter
Glue stick, length
Weight according to
EPTA-Procedure 01/2003
Battery
Rated voltage
Capacity
Number of battery cells
Operating duration per
battery charge (according to
Bosch testing procedures)
Battery Charger
Article number
Charging time
Output voltage
Charging current
Allowable charging
temperature range
Weight according to
EPTA-Procedure 01/2003
Protection class
Assembly
Battery Charging (see figure A)
 Observe the mains voltage! The voltage of the power
supply must correspond with the data given on the name-
plate of the battery charger. Battery chargers marked with
230 V can also be operated with 220 V.
The battery is supplied partially charged.
To ensure full battery capacity, completely charge the battery
(at least 2–3 hours) before using for the first time.
The glue pen cannot be used during the charging procedure;
it is not defective, when it does not function during the charg-
ing procedure.
The lithium-ion battery can be charged at any time without re-
ducing its service life. Interrupting the charging procedure
does not damage the battery.
The "Electronic Cell Protection (ECP)" protects the lithium ion
battery against deep discharging. When the battery is dis-
charged, the glue pen is switched off by a protective circuit:
The glue is no longer heated.
1 609 92A 0JN | (18.6.14)
GluePen
3 603 BA2 0..
s approx.15
°C approx.170
mm Ø 7
mm 150
 Flashing  Continuous light
– Plug the mains plug of the battery charger into the socket
kg 0.1
Li-Ion
Disconnect the battery charger from the mains supply when
V= 3.6
not using it for longer periods.
Ah 1.5
 Protect the battery charger against moisture!
1
Observe the notes for disposal.
min approx.30
(corresponds with ap-
Operation
prox. 6 glue sticks)
Starting Operation
2 609 120 4..
Switching On
h 3.0–4.0
– To start the operation, press the On/Off button 4 until the
V= 5
mA 500
LED Indicators
green
°C +5 ... +40
kg 0.1
/II
 Flashing  Continuous light
Switching Off
– To switch off, press the On/Off button 4 until the LED indi-
Automatic shut-off:
Note: The glue pen switches off automatically after 10 min-
utes in order to save energy.
– Switch the glue pen on again and check the LED indicator 5.
To save energy, only switch the glue pen on when you are us-
ing it.
 After use, place down the glue pen in a safe manner and
Working Advice
 Do not allow the hot glue or the nozzle tip to come into
Use only glues recommended by the manufacturer of the glue
pen (see page 3).
Bonded connections can loosen under the effect of moisture.
LED Indicators
red green Meaning

– The battery is being charged

– The battery is fully charged
The battery has less than 30% of its

–
capacity and should be charged

– The battery is completely discharged
outlet and the charger plug 9 into socket 8.
LED indicator 5 lights up green.
Meaning

The glue is being heated
for approx. 15 s

Glue pen ready for operation
cator 5 goes out.
When the battery LED indicator briefly lights up red, the
battery must be recharged.
allow it to cool down completely before packing it
away. The hot nozzle can cause damage and/or burns.
contact with persons or animals. Glue and nozzle tip
reach a temperature of approx. 170 °C; danger of burning.
If hot glue comes into contact with the skin, hold the affect-
ed area immediately under a stream of cold water for sev-
eral minutes. Do not try to remove the glue from the skin.
