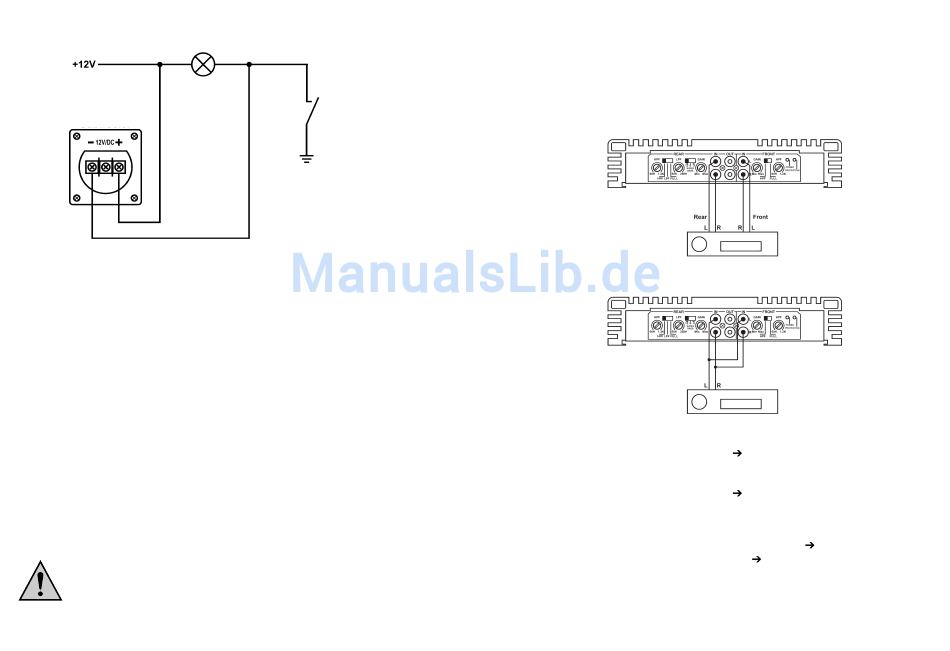

Subwoofer lighting connection
luggage compartment
lighting
subwoofer
Connect the "+" connection of the sub-
woofer's power supply connection (20)
with a voltage source connected
through the starter.
Connect the "-" connection of the sub-
woofer's power supply connection with
a suitable grounding point.
Amplifier input connection
The amplifier has Cinch inputs for connecting to the vehicle radio.
Vehicle radios with Cinch outputs can be directly connected to the input sockets.
Should the vehicle radio only have speaker outputs, you must use a certified NF
adapter.
Only use certified, shielded cinch wires for the connections. Using
other cables may lead to malfunctions.
Keep the length of Cinch wires as short as possible.
34
lighting switch
for luggage
compartment
ground
When the ignition is switched on, the
subwoofer lighting is also activated. This
prevents unwanted discharging of the
onboard battery.
If the subwoofer is built into the luggage
space, the luggage area lighting
connection can be used, for example.
The lighting switches on automatically if
the luggage compartment is opened.
Do not install the Cinch wires near other wires. In this way, you can avoid dis-
turbances or interferances on the amplifier input.
To avoid distortions or incorrect settings that can lead to damaging the device,
all connections should only be made with devices having the proper corre-
sponding connections, i.e. Cinch outputs to Cinch inputs. Please also observe
the power ratings listed under "Technical data".
Auto radio with 4 pre-amp outputs
Cinch output
Auto radio with 2 pre-amp outputs
Cinch output
Connect the Cinch output of your vehi-
cle's radio with the Cinch input of the
amplifier.
Cinch output
Car radio
Car radio
rear output
REAR IN connection (6)
front output
REAR IN connection (8)
Observe the colour-coded right-left
marking of the Cinch outputs.
white or black left
red right
Should your vehicle radio not have over
4 pre-amp outputs, please use a so-
called Y-adapter.
