alfen Eve Single Kurzanleitung

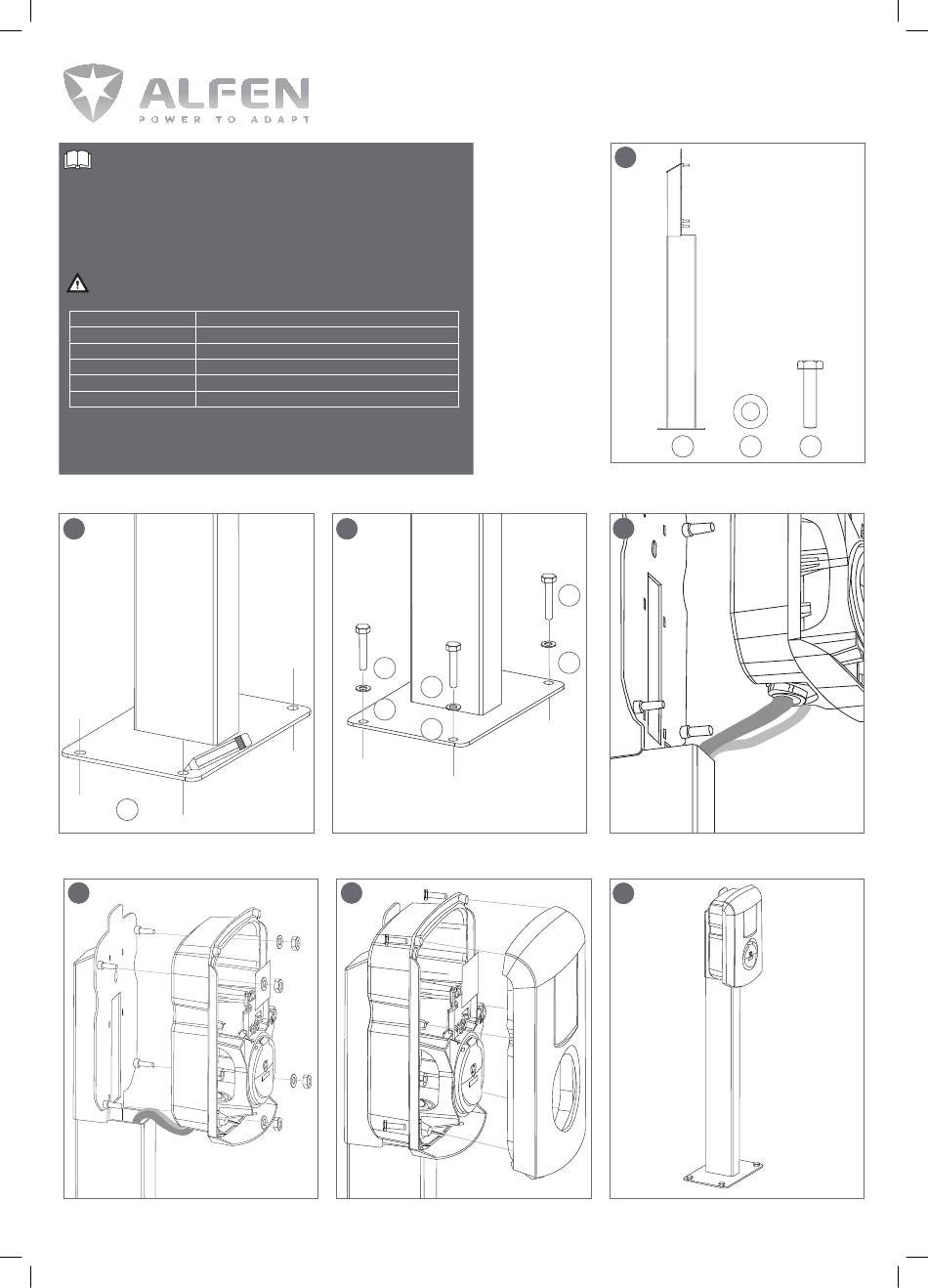

This document contains installation instructions for the Eve Single Pole. Please
refer to our website for the recent manuals of the charging station:
www.alfen.com/en/downloads.
Please refer to the Knowledge Base for the most recent version of this
document: https://knowledge.alfen.com.
The Eve Single Pole is able to support one Eve Single S- or Pro-line charging
station and can be mounted directly on the ground or on an accessory Concrete
Base or Metal Base.
The electric system must be disconnected from every power source before
performing any installation or maintenance work!
Material Stainless Steel, AISI304
Finishing Powder coating
Color RAL 7043 (Traffic grey)
Dimension product 1180x300x200 mm
Dimension package 1200x360x280 mm
Total weight Approx. 9.4 kg
Mounting equipment:
- M10 wrench
- M8 socket wrench
- Gloves
B
1
Use the base plate as a marking template when
placing directly on the ground.
E
Fix the charging station in place with the M8 washers
and nuts included with the charging station.
EVE SINGLE POLE
A R T . N O . 8 0 3 8 7 3 0 3 6 - I C U
C
3
3
2
2
Secure the mounting pole with the included
washers and bolts.
F
Fix the front cover back onto the charging
station with the bolts from the charging station.
A
1
Package contents:
1. 1x Eve Single Pole
2. 4x Washer M10 A2
D
3
2
Connect the wires according to the instructions of
the Eve Single S- or Pro-line manual.
G
Installation completed.
Eve Single Pole manual | Version 1.0 | 203130210-ICU 2021
2 3
3. 4x Hex bolt M10x30 A2
