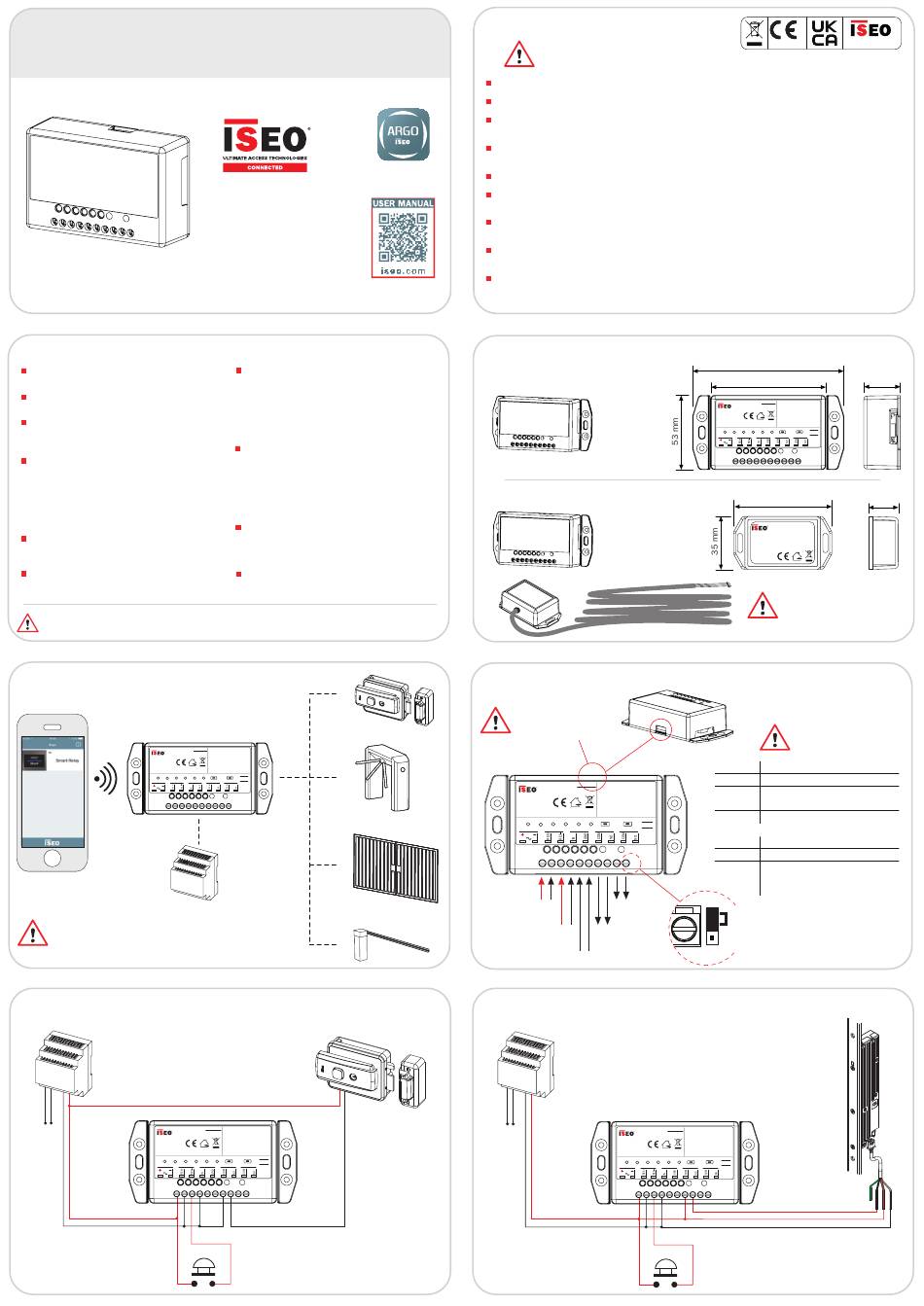

ISEO Smart RELAY 2.0 Installationsanleitung

Smart RELAY 2.0
INSTALLATION GUIDE (EN)
Non contractual document. Subject to change. Cod. 60005E065000.3 - 17/06/2022
Smart Relay Installation Guide (EN) - © 2022 ISEO Serrature S.p.a. - www.iseo.com
TECHNICAL DATA
PRODUCT:
Smart Relay.
APPLICATION:
To open any electrical device.
MODELS:
1. Smart Relay (with built in BLE module).
2. Smart Relay with remote BLE module. *
PACKAGE CONTENT:
- 1 Smart Relay
- 1 Plastic pin to setup Programming Mode
- 1 DIN rail mounting clip with screws
- 1 BLE remote module with cable
(only for model 2)*
- 1 Installation guide (EN/IT)
COMMUNICATION INTERFACE:
Bluetooth 4.0 - Frequency 2,40 - 2,4835 GHz
Maximum power: 5,25 mW
POWER SUPPLY:
10 ÷ 30 VDC (2 W)
12 ÷ 24 VAC (4 VA)
If the power supply has a power greater than 90 W and it's not SELV type (Safety Extra Low Voltage - double
insulation, overcurrent and short-circuit protected), it must be provided upstream of the lock power input, an
appropriate protection switch (circuit breaker), or delayed fuse with protection value equal to 1 A.
PRINCIPLE OF WORKING
On average
10 mt*
REMOTE ANT .
R
SMART RELAY
MADE IN ITALY
Power IN
10 - 30VDC (2W) RELAY: 5A - 30VDC/VAC
12 - 24VAC (4VA) OUTPUT: 1A - 30VDC/VAC
ARGO Power REX IN OUT
Power IN REX INPUT
VDC
*Phone Bluetooth trasmission total distance may vary
depending on Smart Relay location and surrounding
environment. For example walls, doors, glazed surfaces
can reduce or stop the communication between phone
and Smart Relay.
CONNECTION EXAMPLE: SMART RELAY OPENS AN ELECTRIC LOCK
Power
supply
230VAC
R
SMART RELAY
MADE IN ITALY
Power IN
10 - 30VDC (2W) RELAY: 5A - 30VDC/VAC
12 - 24VAC (4VA) OUTPUT: 1A - 30VDC/VAC
ARGO Power REX IN
Power IN REX
VDC
Request to Exit
(REX)
Iseo Serrature s.p.a
Via San Girolamo 13
25055 Pisogne (BS)
ITALY
Tel. +39 0364 8821
iseo@iseo.com
INPUTS:
- 1 Opto-insulated Input called REX (Request to Exit)
10 ÷ 30 VDC (12 ÷ 24 VAC +/- 10 %)
I = 1,5 mA @10 Vdc, I = 4 mA @30 Vdc
Max cable length = 100 mt
- 1 Digital Input (NO contact) called INPUT
Max cable length = 25 mt
OUTPUTS:
- 1 Power Relay: RELAY
NO contact (normally open)
30 VDC/VAC - 5 A max with RESISTIVE loads
- 1 Signal Relay: OUTPUT
NO/NC contact (NO as default)
30 VDC/VAC - 1 A max with RESISTIVE loads
HOUSING:
- To be fixed to the wall.
- To be placed inside a box.
- On a DIN35 Rail with the additional mounting clip.
OPERATING TEMPERATURES:
- Working and storage: - 25 °C/+ 70 °C.
- H.R.: Max. 95 % without condensing.
RELAY SW1 MASTER SER
AUX
RELAY OUTPUT
POWER IN
Electric lock
REMOTE ANT .
OUT RELAY SW1 MASTER SER
AUX
INPUT RELAY OUTPUT
WARNINGS
Read this manual prior to use the device in order to ensure a safe and proper use.
Preserve this manual as future reference.
The installation and maintenance of the device must be carried out by qualified technical staff, adequately
trained by ISEO.
The instructions should be carefully followed during installation. These instructions and any maintenance
instructions should be passed on by the installer to the user.
Download
No modifications of any kind are permitted, except for those described in these instructions.
ISEO Argo App
The product must be destined only for the use for which it is expressly designed and therefore as a
credential reader for civil and industrial locations. Any other use is considered improper and dangerous.
The electrical connection must be made according to the constructor's instructions and respecting the
regulations in force.
In the event of a failure and/or poor operation, remove the power supply using the main switch and do not
tamper with it. For all repairs, exclusively contact a technical assistance center authorized by the constructor.
Disconnect the power supply before carrying out any technical service that involves opening or accessing
the internal parts of the product.
MODELS AND DIMENSIONS
Smart Relay (with built in BLE)
Smart Relay with remote BLE
Remote BLE
ELECTRICAL CONNECTIONS
Remote BLE connector
available only with Smart
Relay with remote BLE.
R
SMART RELAY
MADE IN ITALY
Power IN
10 - 30VDC (2W)
12 - 24VAC (4VA)
ARGO Power
Power IN
VDC
Power IN
CONNECTION EXAMPLE: SMART RELAY OPENS MULTIBLINDO eMOTION
230VAC
MADE IN ITALY
Power IN
10 - 30VDC (2W)
12 - 24VAC (4VA)
ARGO
Power IN
VDC
Smart Relay
INPUTS
Power IN
REMOTE ANT .
REX
RELAY: 5A - 30VDC/VAC
OUTPUT: 1A - 30VDC/VAC
INPUT
REX IN OUT RELAY SW1 MASTER SER
AUX
REX INPUT RELAY OUTPUT
OUTPUTS
RELAY
OUPUT
OUTPUT
REX RELAY
INPUT
Power
supply
REMOTE ANT .
R
SMART RELAY
MADE IN ITALY
Power IN
10 - 30VDC (2W) RELAY: 5A - 30VDC/VAC
12 - 24VAC (4VA) OUTPUT: 1A - 30VDC/VAC
ARGO Power REX IN OUT RELAY SW1 MASTER SER
AUX
Power IN REX INPUT RELAY OUTPUT
VDC
Request to Exit
(REX)
ULTIMATE ACCESS
T E C H N O L O G I E S
EC Declarations of conformity available at:
https://www.iseo.com/it/en/download
109 mm
26 mm
82 mm
REMOTE ANT .
R
SMART RELAY
RELAY: 5A - 30VDC/VAC
OUTPUT: 1A - 30VDC/VAC
Power REX IN OUT RELAY SW1 MASTER SER
AUX
REX INPUT RELAY OUTPUT
15 mm
65 mm
R
SMART RELAY
MADE IN ITALY
Remote Bluetooth Module
Max cable length = 3 mt
IP53
For INPUTS and OUTPUTS
technical data see Box
«Technical data».
Description
Power supply
Request to exit
(remote opening command)
NO contact
Description
5A power relay NO
1A signal relay NO (congurable
NC by a jumper under the cover
*
enclosure)
*
Output NO (default)
Output NC
Multiblindo
eMotion
