Philips Head Screw Driver Required.
STEP 1:
For this step you'll need part A, both part B, and 2 Philips head screw.
We are going to attach the Legs (Part B) to the Logo Plate (Part A). Line up
the legs as shown in the above image (the legs face outward). Slip the leg
tube over the logo plate tube and line up the holes (pictured below). Next,
insert Philips screw and tighten with Philips Screw Driver. Repeat for the
other Leg.

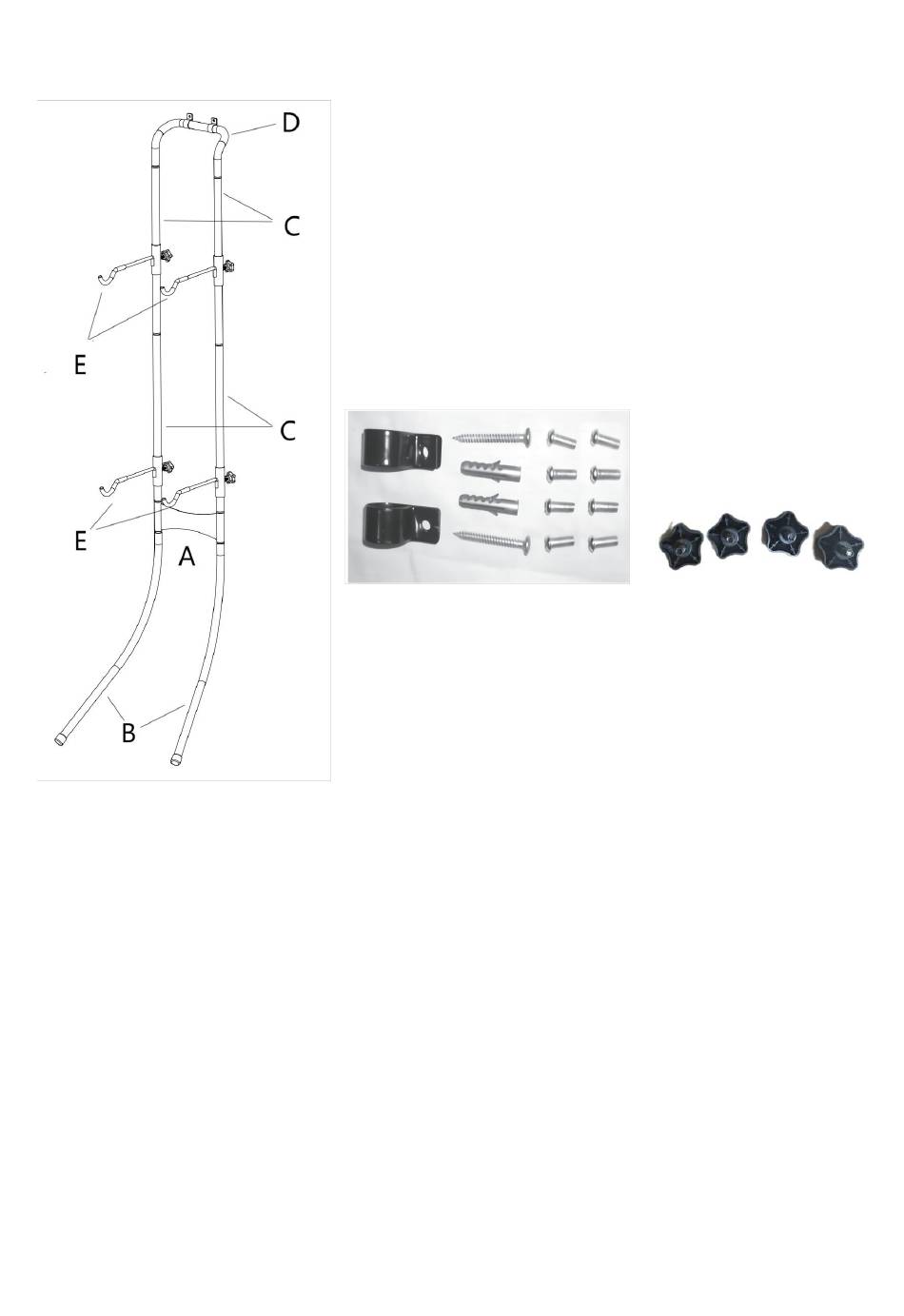

Assembly
A. Logo Plate
B. Leg
C. Vertical Upright
D. Top Bar
E. Bike Arm Assembly
F. Parts Bag：
Wall Anchor
ST5.4 x 50mm Long Drywall Screw 2pcs
Drywall Anchor
M6 x 12mm Philips Head Screw
Club Handle
- 4 -
1pcs
2pcs
4pcs
1pcs
4pcs
2pcs
2pcs
8pcs
4pcs
