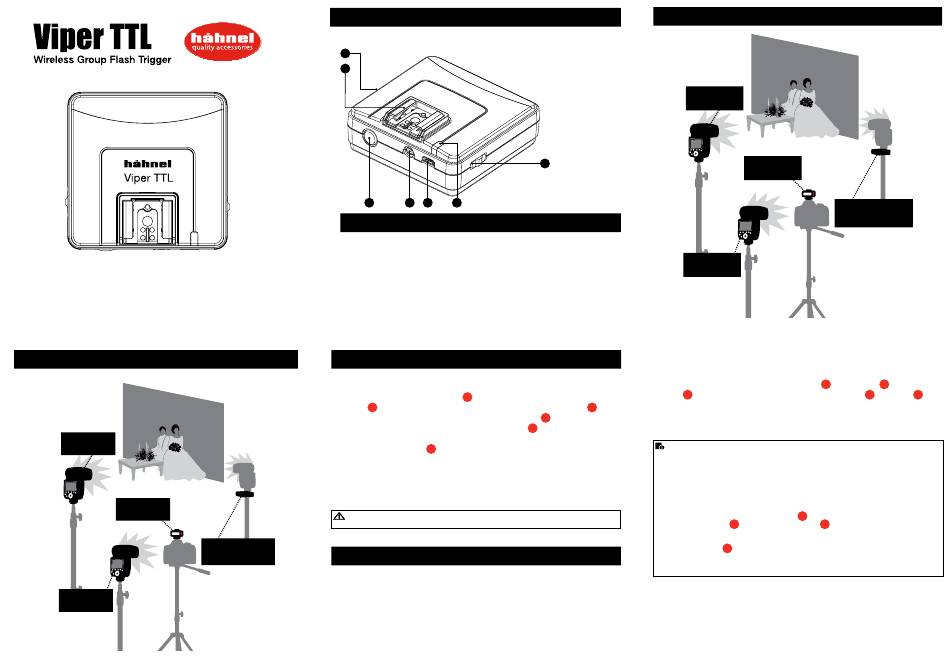

Hahnel Viper TTL Kurzanleitung

Quick Start
Guide
Set up
hähnel
/MODUS 600RT
GROUP A
Viper TTL
Transmitter
MASTER
hähnel
/MODUS 600RT
GROUP B
Viper TTL Receiver Controls
16
10
15
Receiver
(10) Hot shoe
(11) Power / Status LED
(12) ON/OFF Switch
(13) Micro USB - firmware update
Receiver
IRL/UK: Set up
The "Viper TTL receiver" is used together with "Viper TTL transmitter" or "Modus
600RT".
• Attach Speedlight to <hot shoe>
16
switch select one of the group A, B or C for this receiver. Turn on
Viper TTL receiver which will give a green flashing light
is on. Turn on the Speedlight. Press <Test> button
Speedlight is working
• Using the cable socket
receiver via a "Hähnel Studio Light Cable" which is available as a separate
accessory
• Unlimited numbers of Speedlights / studio lights with Viper TTL receivers can
be allocated to one or different groups
• For "Nikon" version, set the Nikon Speedlight to <i-TTL> mode
Viper TTL RX with
3rd Party Speedlight
DCM Digital Channel Matching
GROUP C
• Open channel - When you use the Viper TTL for the first time, the 2.4GHz
wireless connection is using a default "open channel". This allows several
transmitters to individually control the same selection of receivers. The "open
channel" can be useful when using several cameras with the same lighting
system. But it is also more prone to other outside interferences
• DCM - Digital Channel Matching is a more secure coded wireless system
which will avoid any external interference between Viper TTL transmitter and
receiver. Carry out the following set up to match all your devices
• A - Turn off both Viper TTL transmitter and receiver
12
14 13 11
(14) Remote control cable socket
(15) Test Button
(16) Group A / B / C switch
10 of the Viper TTL receiver. Using the slide
11 to indicate power
15 on receiver to confirm
14 a studio light can be connected to the Viper TTL
Set up
hähnel
/MODUS 600RT
GROUP A
Viper TTL
Transmitter
MASTER
hähnel
/MODUS 600RT
GROUP B
• B - Hold down <Test> button on the transmitter and turn ON "transmitter".
LED on the transmitter will flash rapidly, release the test button and LCD on
the transmitter will display "coding"
• C - Now hold down receiver <Test> button
LED 11 will flash green rapidly. Release <Test> button
change to red ON all the time confirming DCM is completed
12
the
• D - If you have additional Viper TTL receivers, then repeat stage "C". (Viper
TTL transmitter must still be in "coding")
• If you are using the Viper TTL in combination with the hähnel Modus 600RT
Speedlight, you can still DCM all devices. Use the same procedure from A to D and
then also DCM match the Modus 600RT as a slave version as explained in Modus
manual
• It is possible to reset the Viper TTL transmitter and receiver to "open channel"
• Hold down <Test> button on transmitter and turn ON transmitter and continue to
hold down button on transmitter for more than 5 sec. LED on transmitter will change
from rapid flashing to always ON. Transmitter is now "open channel"
• Now hold down receiver <Test> button
15
hold down button for more than 5 sec. LED
always ON. Receiver is now "open channel"
• If you wish to use old 3rd party Speedlight's which are not E-TTL or i-TTL compatible,
16
then set switch to Group "C" whilst performing the reset of the Receiver to "open
channel". This allows 3rd party Speedlight's to be triggered in Speedlight "M" mode.
Check our website www.hahnel.ie for more info
Viper TTL RX with
3rd Party Speedlight
GROUP C
15 and turn ON 12 "receiver". The
15 . The LED 06 will
15
and turn ON receiver and continue to
11
will change from rapid flashing to
