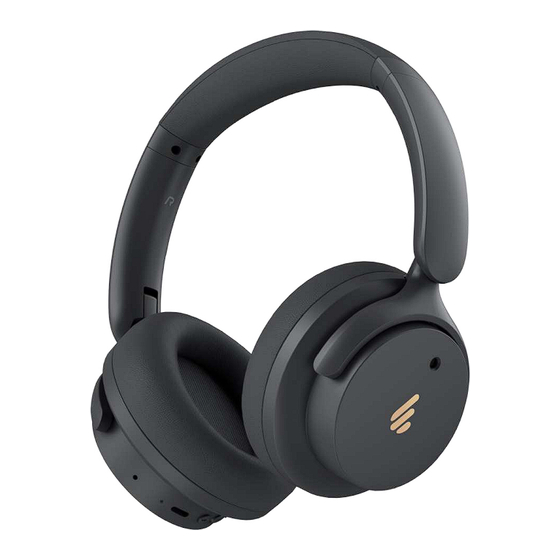

Wireless Over-Ear Headphones with Active Noise Cancellation
EN 1. Power ON/OFF
Press and hold the power button to power on/off.
2. First pairing
1. Once powered on, the headphones will automatically enter
Bluetooth pairing mode.
2. Select "EDIFIER H9" from your device list to connect.
3. Pairing for new device
1. In ON state, press and hold the "
enter Bluetooth pairing mode.
2. Select "EDIFIER H9" from your device list to connect.
Note: For subsequent use, the headphones will automatically connect to the device used last time.
4. Multipoint connection
①
②
③
Bluetooth
EDIFIER H9
1. Pair device A with the headphones successfully.
2. Press and hold the "
pairing mode, and then select "EDIFIER H9" in device B settings
to connect.
3. Select "EDIFIER H9" again in device A settings to connect, and the
multipoint connection is done.
Note: For subsequent use, the headphones will automatically reconnect to the two devices
used last time.
5. Charging
Connect the headphones to a power source via the USB-C cable for
charging.
Note: 1. Make sure the USB-C port is completely dry before charging.
2. When charging with a USB-C cable, the product is used as wired headphones
and Bluetooth functions are unavailable.
6. Controls
●
Call
●
Music
●
Mode
Note:
1. "x 1" Press, "x 2" Double press, "—" Press and hold;
2. Default sound control: High Noise Cancellation / Ambient Sound / Noise Cancellation Off.
3. Download EDIFIER ConneX App for more customizable control settings.
7. Reset
1. In ON state, press the "+" and "-" buttons simultaneously for about 5
seconds to finish reset.
2. The headphones will automatically enter Bluetooth pairing mode if
successful.
8. Wired listening
Connect to the headphones via the USB-C cable. Wired listening will
automatically disable Bluetooth mode.
H9
Model: EDF200174
Manual
3s
A
" button for 3 seconds to re-enter Bluetooth
x1
x1
x2
x1
x2
x1
x1
x2
x1
USB-C
ON
-
OFF
-
Bluetooth
EDIFIER H9
Bluetooth
3s
EDIFIER H9
" button for about 3 seconds to
x6
Bluetooth
EDIFIER H9
A
B
Input: 5V
1A
5s
