Limited One Year Warranty
T&S warrants to the original purchaser (other
than for purposes of resale) that such product
is free from defects in material and workman-
ship for a period of one (1) year from the date
of purchase. During this one-year warranty
period, if the product is found to be defective,
T&S shall, at its options, repair and/or replace
it. To obtain warranty service, products must
be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product to T&S
and the return of repaired or replaced product
to the purchaser are the responsibility of the
purchaser. Repair and/or replacement shall be
made within a reasonable time after receipt by
T&S of the returned product. This warranty does
not cover Items which have received secondary
fi nishing or have been altered or modifi ed after
purchase, or for defects caused by physical
abuse to or misuse of the product, or shipment
of the products.
Any express warranty not provided herein,
and any remedy for Breach of Contract which
might arise, is hereby excluded and disclaimed.
Any implied warranties of merchantability or
fi tness for a particular purpose are limited to
one year in duration. Under no circumstances
shall T&S be liable for loss of use or any special
consequential costs, expenses or damages.
Some states do not allow limitations on
how long and implied warranty lasts or the
exclusion or limitation of incidental or conse-
quential damages, so the above limitations or
exclusions may not apply to you. Specifi c rights
under this warranty and other rights vary from
state to state.
P/N:
098-003148-45 Rev.2
Date:
04-24-98
Drawn:
CW
Checked:
MVW 06-10-98
Approved:
MAB 06-10-98

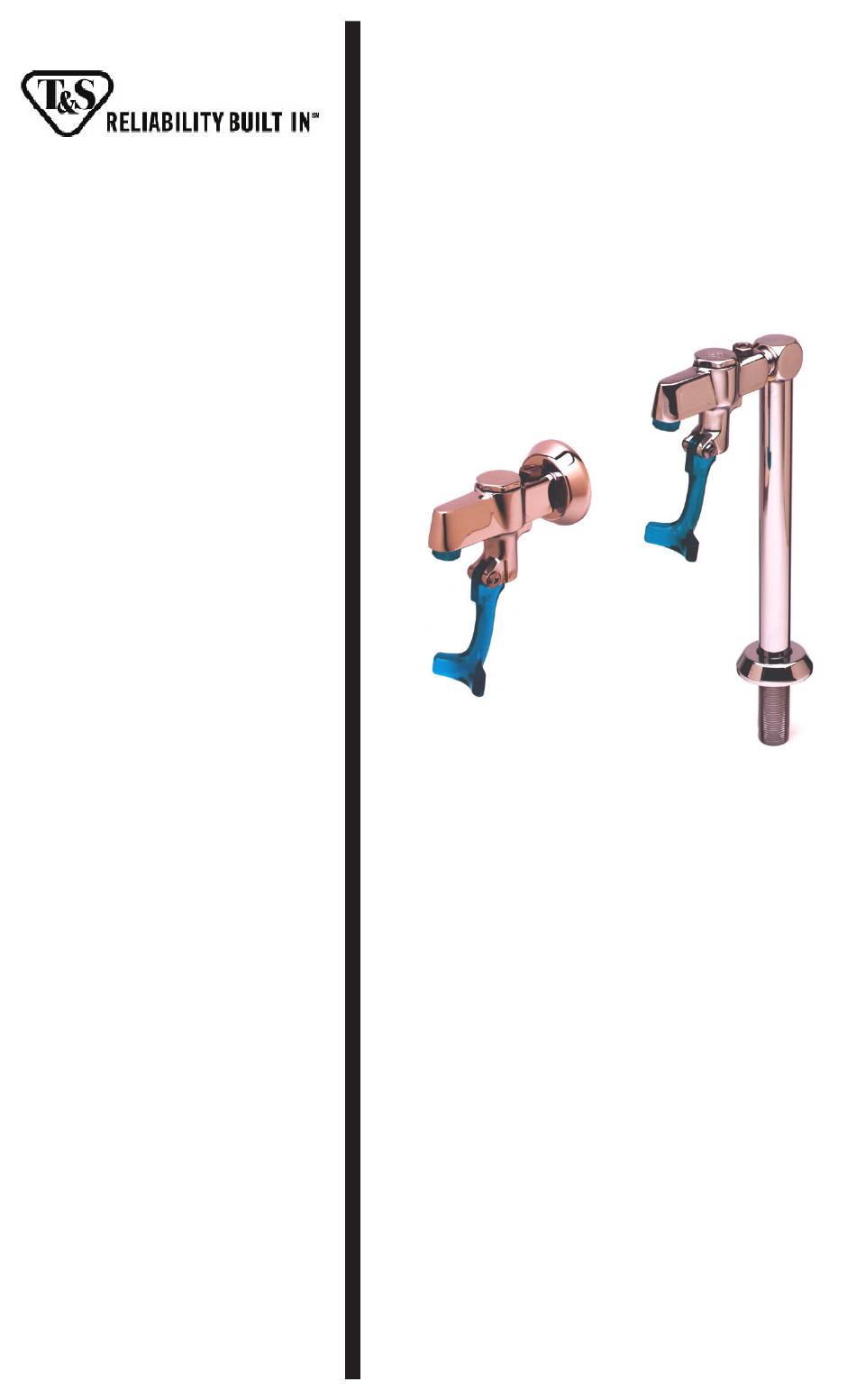

Installation and
Maintenance
Instructions
B-1200 Series
Push-Back Glass
Fillers
Deutsch:
Español:
Français:
Installations- und
Wartungsanleitungen
la Instalación y las
Instrucciones de Man-
tenimiento
les Instructions
d'Installation et
d'Entretien

Werbung

loading

Inhaltszusammenfassung für T&S B-1200 Serie

  • Seite 1 Installation and Maintenance Instructions Limited One Year Warranty T&S warrants to the original purchaser (other than for purposes of resale) that such product is free from defects in material and workman- ship for a period of one (1) year from the date of purchase.
  • Seite 2 Exploded View B-1202 19 18 B-1210 B-1200 B-1200 B-1202 B-1206 B-1206 Some items are listed for instructional purposes and may not be sold as separate parts.
  • Seite 3 Part Number Guide Glass Filler Assemblies Asm, Glass Filler (B-1200 thru B-1210) Asm, Body - Glass Filler & Pin Washer 001030-45 Tip, Glass Filler 003090-45 Screw, Handle 003199-45 Nut, Handle 003198-45 Lever Arm, Blue Lexan 001145-45 Nut, Volume Control 000714-25 Stem, Volume Control 000834-25 Washer, Volume Control...
  • Seite 4 General Instructions Installation: (B-1200) Installation: (B-1210) 1. Turn off water supply and drain 1. Turn off water supply and drain lines. Hand tighten no.20 fi rmly lines. against no.1 and remove no.21 from 2. Unscrew and remove no.31 and no.1. no.30 from no.28.
  • Seite 5 Instrucciones Generales Instalación: (B-1200) Instalación: (B-1210) 1. Cierre la fuente principal de agua 1. Cierre la fuente principal de agua y y desagüe las tuberias. Firmemente desagüe las tuberias. aprete a mano la parte No.20 contra la 2. Destornille y remueva las partes parte No.1 y remueva la parte No.21 No.31 y No.30 de la parte No.28.
  • Seite 6 Instructions Générales L’Installation: (B-1200) L’Installation: (B-1210) 1. Fermer la réserve de l’eau et 1. Fermer la réserve de l’eau et égout- égoutter la tuyauterie. Resserrer par ter la tuyauterie. main Nº.20 fermement contre Nº.1 et 2. Dévisser et enlever Nº.31 et Nº.30 enlever Nº.21 de Nº.1.
  • Seite 7 Allgemeine Anleitungen Installation: (B-1210) Installation: (B-1200) 1. Wasserzufuhr abstellen und Leitun- 1. Wasserzufuhr abstellen und Lei- gen entleeren. tungen entleeren. Mit der Hand Nr.20 fest gegen Nr.1 anziehen und Nr.21 2. Nr.31 und Nr.30 von Nr.28 loss- von Nr.1 entfernen. chrauben und entfernen.
  • Seite 8 RELATED T&S BRASS PRODUCT LINE B-1225 Combination Glass Pitcher Filler B-1230 Water Station T&S BRASS AND BRONZE WORKS, INC. A fi rm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088, T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’...
