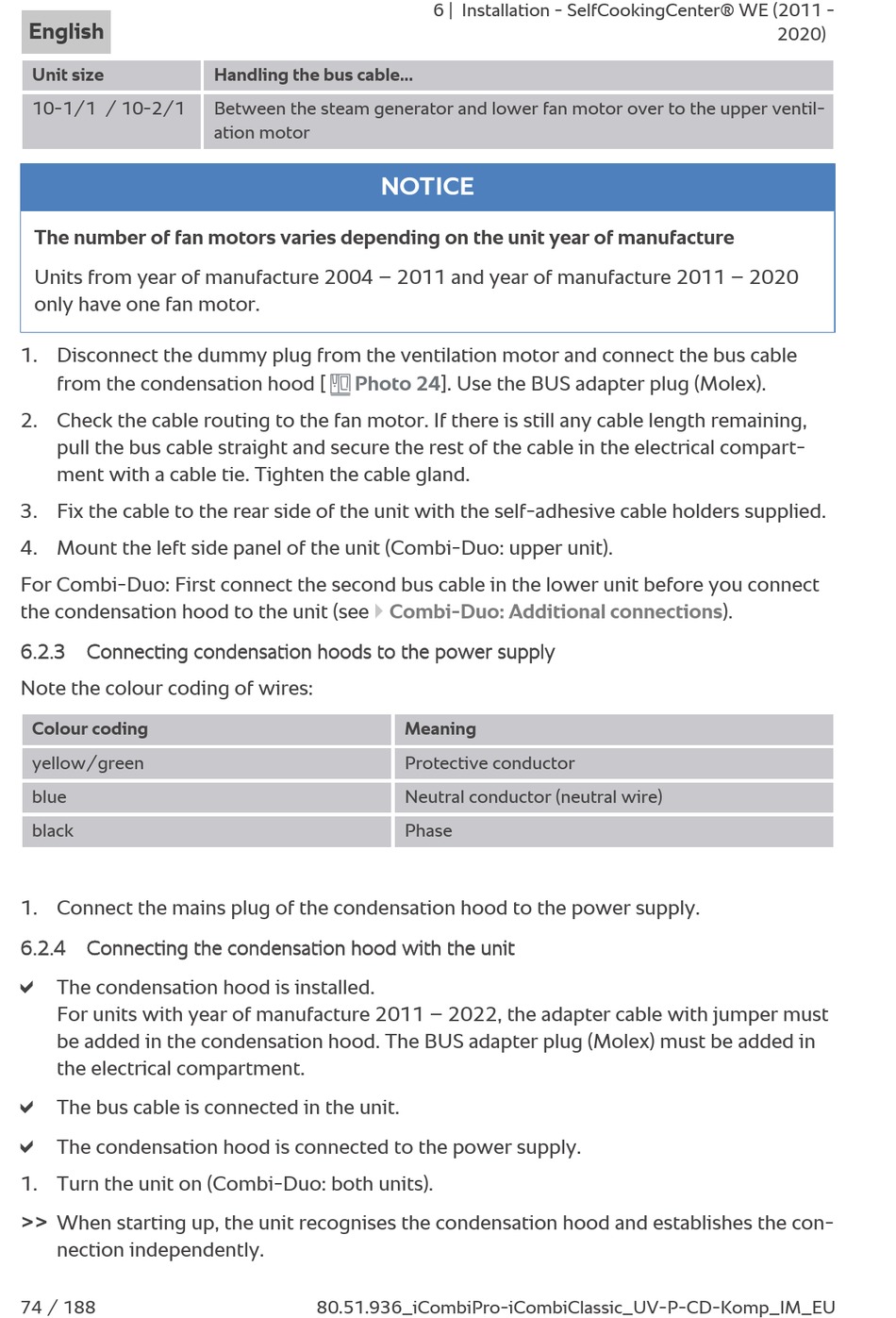

Connecting Condensation Hoods To The Power Supply; Connecting The Condensation Hood With The Unit - Rational UltraVent Original Installationsanleitung

English
Unit size
10-1/1 / 10-2/1
The number of fan motors varies depending on the unit year of manufacture
Units from year of manufacture 2004 – 2011 and year of manufacture 2011 – 2020
only have one fan motor.
1. Disconnect the dummy plug from the ventilation motor and connect the bus cable
from the condensation hood [
2. Check the cable routing to the fan motor. If there is still any cable length remaining,
pull the bus cable straight and secure the rest of the cable in the electrical compart-
ment with a cable tie. Tighten the cable gland.
3. Fix the cable to the rear side of the unit with the self-adhesive cable holders supplied.
4. Mount the left side panel of the unit (Combi-Duo: upper unit).
For Combi-Duo: First connect the second bus cable in the lower unit before you connect
the condensation hood to the unit (see

6.2.3 Connecting condensation hoods to the power supply

Note the colour coding of wires:
Colour coding
yellow/green
blue
black
1. Connect the mains plug of the condensation hood to the power supply.

6.2.4 Connecting the condensation hood with the unit

a
The condensation hood is installed.
For units with year of manufacture 2011 – 2022, the adapter cable with jumper must
be added in the condensation hood. The BUS adapter plug (Molex) must be added in
the electrical compartment.
a
The bus cable is connected in the unit.
a
The condensation hood is connected to the power supply.
1. Turn the unit on (Combi-Duo: both units).
>>
When starting up, the unit recognises the condensation hood and establishes the con-
nection independently.
