Operating Instructions
F L A S H I N G L I G H T S
Complete set: H0 5903, H0 5913, H0 5928, N 5949, N 5953, Z 5954, , TT 5929, TT 5958
Expansion set: H0 5911, H0 5924, N 5951, Z 5955, TT 5926,
Control unit: 005.0100.1
The usual light bulbs are not suitable for these precise crossing signals, therefore miniature
light emitting diodes are used. These diodes operate on a maximum voltage of 2.3 volt
only. After having been connected to the 14-16 volt output terminals of a power unit the
circuit assembly ensures the correct voltage.
It is of the utmost importance to only use the crossing signals with the appropriate
circuit assembly.

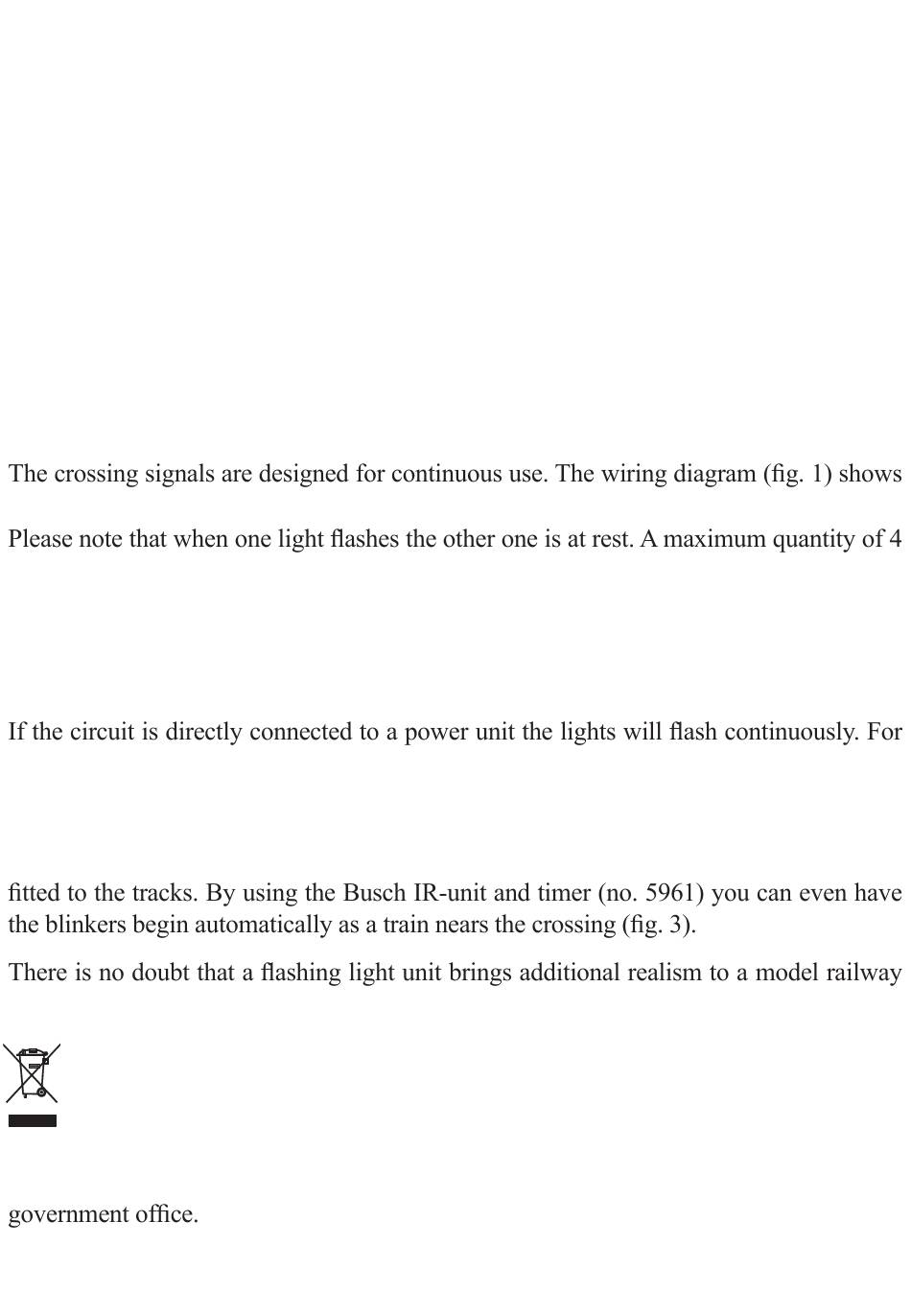

how the signals are connected in the right sequence. Both signals must be connected.
crossing signals can be connected to the circuit assembly. Fig. 2 shows how the additional
signals are connected.
As heat is generated through continuous use a small but essential air supply should be
provided around the assembly.
manual operation, however, the brown lead should be connected to the power unit. Into
the yellow lead an on-off switch should be inserted before this lead is connected to the
power unit. Obviously one can operate the warning lights automatically, i.e. by the trains
themselves in which case suitable contacts or contact rails together with a relay should be
layout. The illustration on the box shows how such a level crossing can be arranged.
The crossed out wheeled bin symbol that can be found on your product, instruction
or package indicates that this product should not be disposed of via the normal
household waste stream. To prevent possible harm to the environment separate this
product from other waste streams to ensure that it can be recycled in an environmentally
sound manner. For more details on available collection facilities please contact your local
This information only applies to customers in the European Union. For other countries,
please contact your local government to investigate the possibility of recycling your product.
