4 - PRODUCT INSTALLATION

4.1 - Installation
ù
Before proceeding with the installation, check the integrity of the
product and that all components are present in the package.
Also make sure that the mounting area of the gear motor is
compatible with the dimensions (Fig. 1/2).
Check the permitted opening angle, based on the mounting points of
the brackets with the graph (Fig. 3/4).
Fig.5 shows a typical installation:
- Gear motors
- Photocells
- Columns for photocells
- Flashing light with antenna
- Key switch or digital keypad
- Control unit
Installing the rear fixing bracket
The fixing position of the rear bracket is determined according to the
graph (Fig. 4).
Important: installations where the values of "A" and "B" (Fig. 3) are as
similar to each other as possible are preferred.

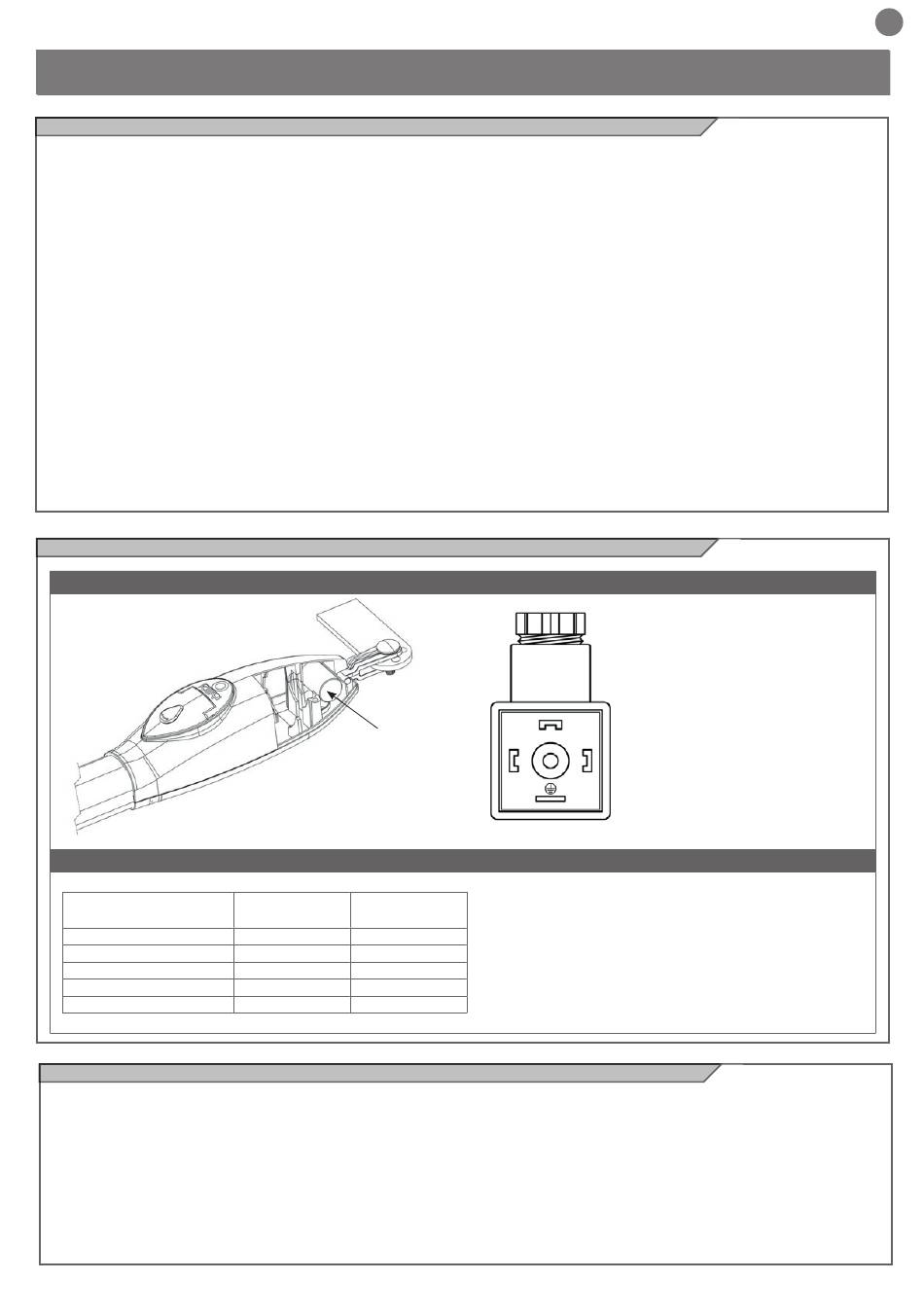

4.2 - Electrical connections

STAR 230 Vac (PS-300FA / PS-400FA)
STAR 24V (900PS400-24FA)
MOTOR CABLE
Blue
Brown
Black
Yellow/Green
Gray
4.3 - Setting of the mechanical limit switch while opening
Release the gear motor (Fig.8).
To facilitate the adjustment of limit switches, you can remove the
aluminum that covers the screw slider.
The profile of the slots can be remove simply by unscrewing the 2
screws that secure the motor hood (Fig.10).
Capacitor
MOTOR DX MOTOR SX
opening closing
closing opening
+ encoder + encoder
S encoder S encoder
- encoder - encoder
If necessary, cut the rear bracket (Fig. 6) to obtain the value "B", then
weld the fixing bracket to the wall.
Secure the bracket to the wall using welding, screws or bolts (not
included).
Installing the front fixing bracket
ATTENTION: the front bracket must be positioned 65 mm
lower than the rear bracket
The front bracket must be fixed to the door according to dimension
"E" (Fig.3).
Installing the gear motor
Place the gear motor against the rear bracket and insert the fixing
screw (Fig.9).
Insert the pin of the sliding bracket into the bush of the front bracket
and secure it with the screw and washer provided (Fig.9).
Tighten the screw on the rear bracket previously mounted with the
nut (Fig.9).
1
3
2
3
1 2
G
WARNING:
For encoder operation, when in the closed position, both gate
panels must rest against a mechanical stop.
WARNING:
Always connect the earth cable to the mains power earth system
with a cable minimum cross sectional area of 2.5 mm
For the end-stop operation, proceed as follows:
- Bring the shutter in position of maximum opening, then lock the
mechanical stop by fastening the bolt.
- Bring the shutter in position of maximum closing, then position
the mechanical stop.
(Fig.7).
Close
Open
Common
Ground
.
2
