2.4 Warranty and disclaimer

LRT Automotive GmbH only accepts responsibility for the delivery condition of the charging station and for all work carried out by LRT specialist
personnel and official partner companies.
The manufacturer's warranty shall elapse in the event of:
• Failure to observe the safety and operating instructions.
• Improper handling and non-intended use of the charging station.
• Unauthorised and improper installation, maintenance and repair of the charging station.
• Modifications or changes to the charging station.
• Damage caused by fire, flooding and other natural disasters.
• Transport damage or damage caused during installation.

3. DESCRIPTION

3.1 Layout

1 Charging housing
Cover fitting
2
Bracket for charging cable
3

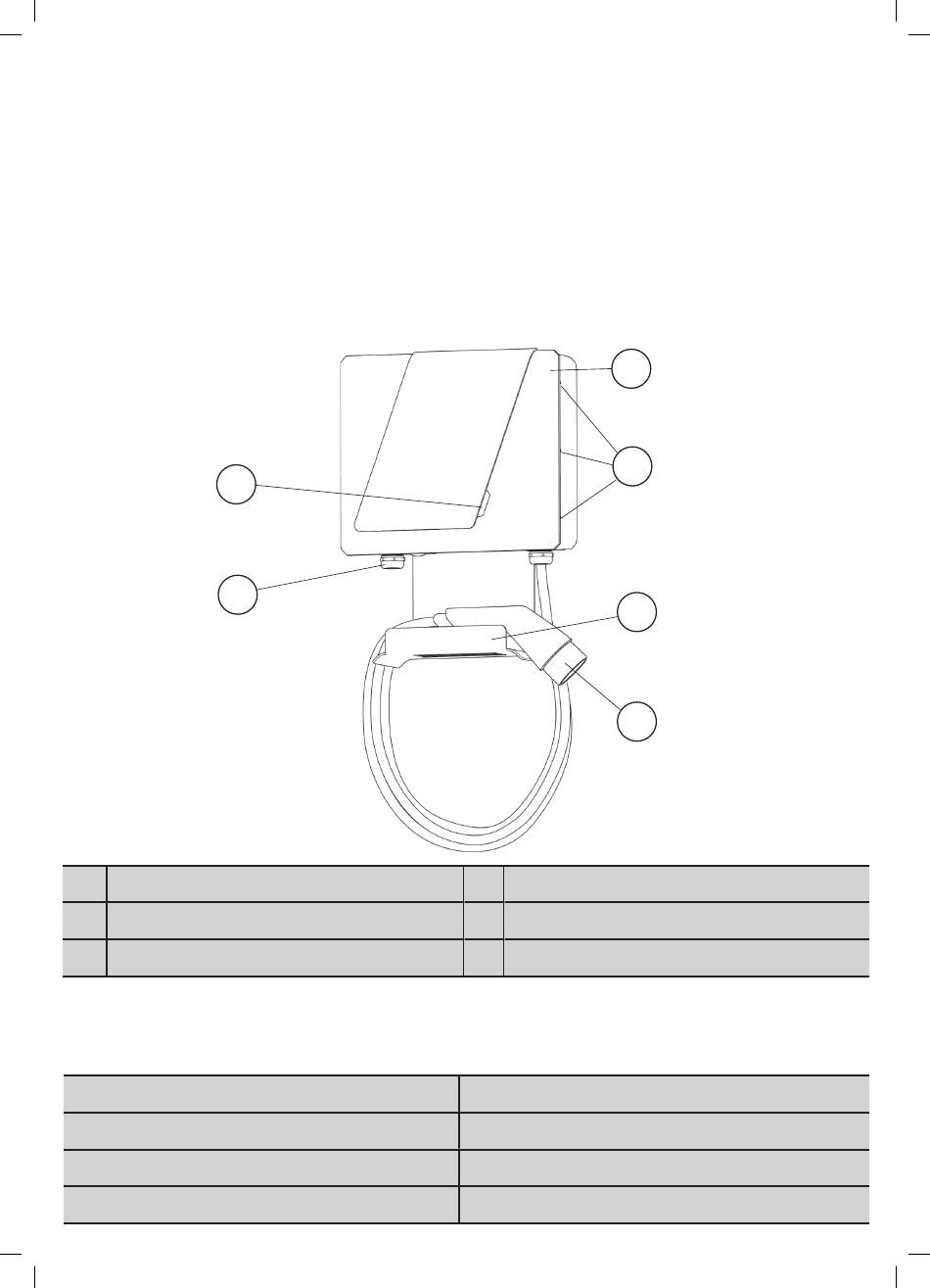

Fig. 1: Charging station housing outside
3.2 Funktion
The AEG Wallbox is a three-phase charging station for charging electric vehicles according to charging mode 3 as per IEC 61851 with alternating
current (AC).
Functional element
Type 2 cable
LED display
RCCB type B (only for 11202, 11204)
211012_11201_11203_AEG_BDA_A4.indd 14 211012_11201_11203_AEG_BDA_A4.indd 14
6
5
1
2
3
4
4 Charging cable with coupler
5 Power cable connection
6 LED display

Function

Coupler for connecting the vehicle
Charging station status display
Safety
