Keep sensors clean at all times to ensure proper functioning.
•
Verify on a regular basis that sensors are still properly mounted.
•
Defective sensors should be replaced as soon as possible. Refer to an authorized dealer for
•
spar parts.
It is strongly advised to test the system before use.
•
G( -%$' ! )
!)!,)-*% ! )
Place an obstacle of ± 1m high at 80 to 100cm behind the rear bumper of your vehicle. Turn the
ignition to ON and put the car in reverse. The system should start to beep automatically or display
the distance to and the direction of the obstacle. Test the installed sensors individually.
$"%-%> ! )
Place an obstacle of ±50 x 50cm at 80 to 100cm behind the rear bumper of your car. Turn the
ignition to ON and put the car in reverse. The system should start to beep automatically or display
the distance to and the direction of the obstacle. Vary the distance of the obstacle to the vehicle
by moving it forwards and backwards. The system should now beep at different intervals and
meanwhile display the distance to and the direction of the obstacle. Move the obstacle left and
right: again, the system should beep automatically and display the distance to and the direction of
the obstacle.
H( !,/%-,$' 0!,-.-,$)-*%
working voltage
rated voltage
rated current
Dimensions
LCD<housing
LCD
control unit
warning modes
detection range
max. alarm distance
sensor angle
ultrasonic frequency
working temperature
for vehicle width up to 1.8m
31.07.2014

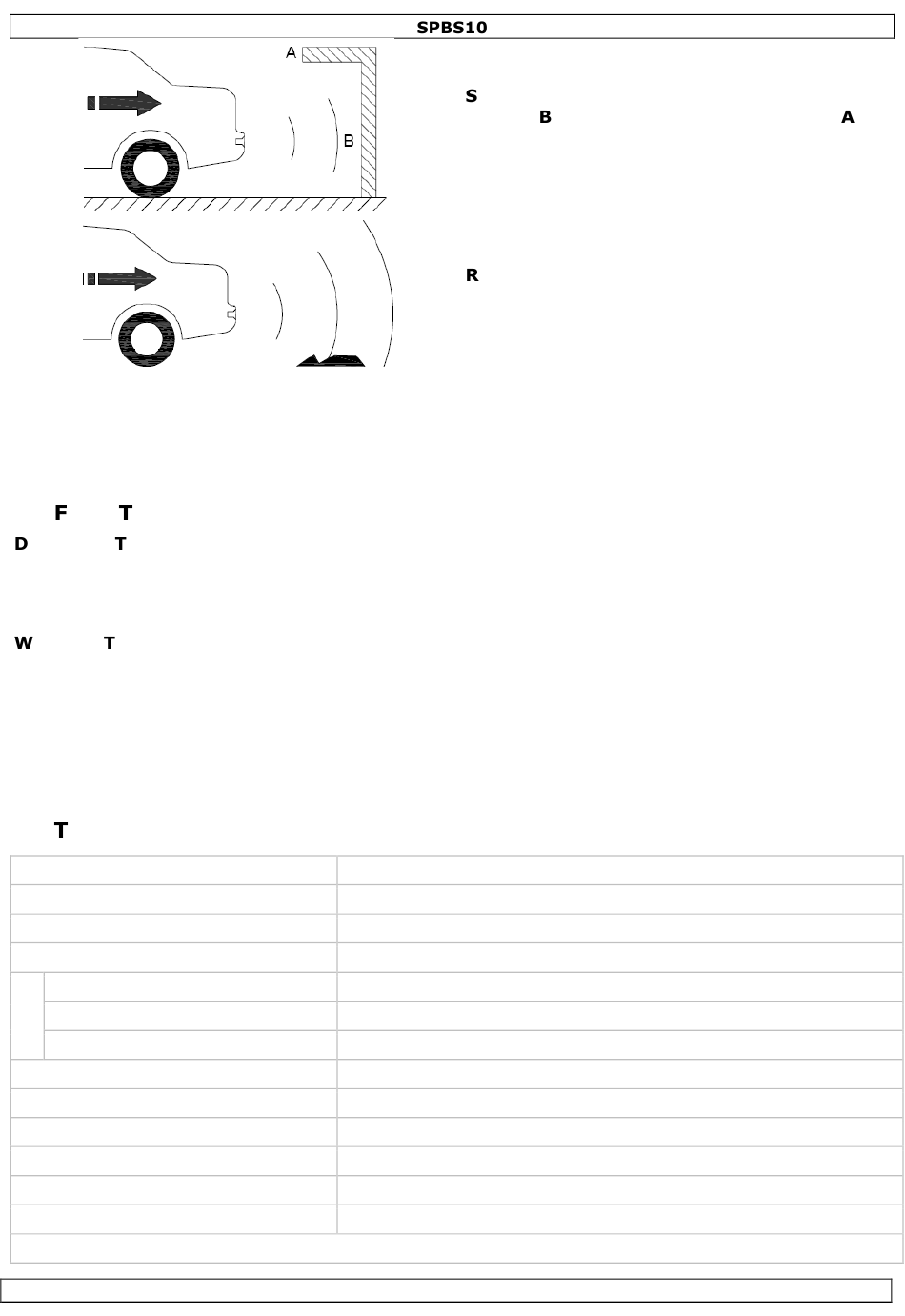

/$0!
Surface
located outside the detection range, it may
never be detected.
*$+ ,*%+-)-*%
Rough road conditions might trigger the
warning system.
10<16VDC (via reversing light)
12Vdc
120mA
85 x 53mm
60 x 40mm
98 x 70 x 25m
sound, distance+direction+bar graph on display
0.3 < 2m
2m
H 60°, V 60°
40KHz±1KHz
<30°C to +70°C
8
will be detected, but as surface is
