Product Features; Technical Data; Noise/Vibration Information - Bosch PFS 7000 Originalbetriebsanleitung

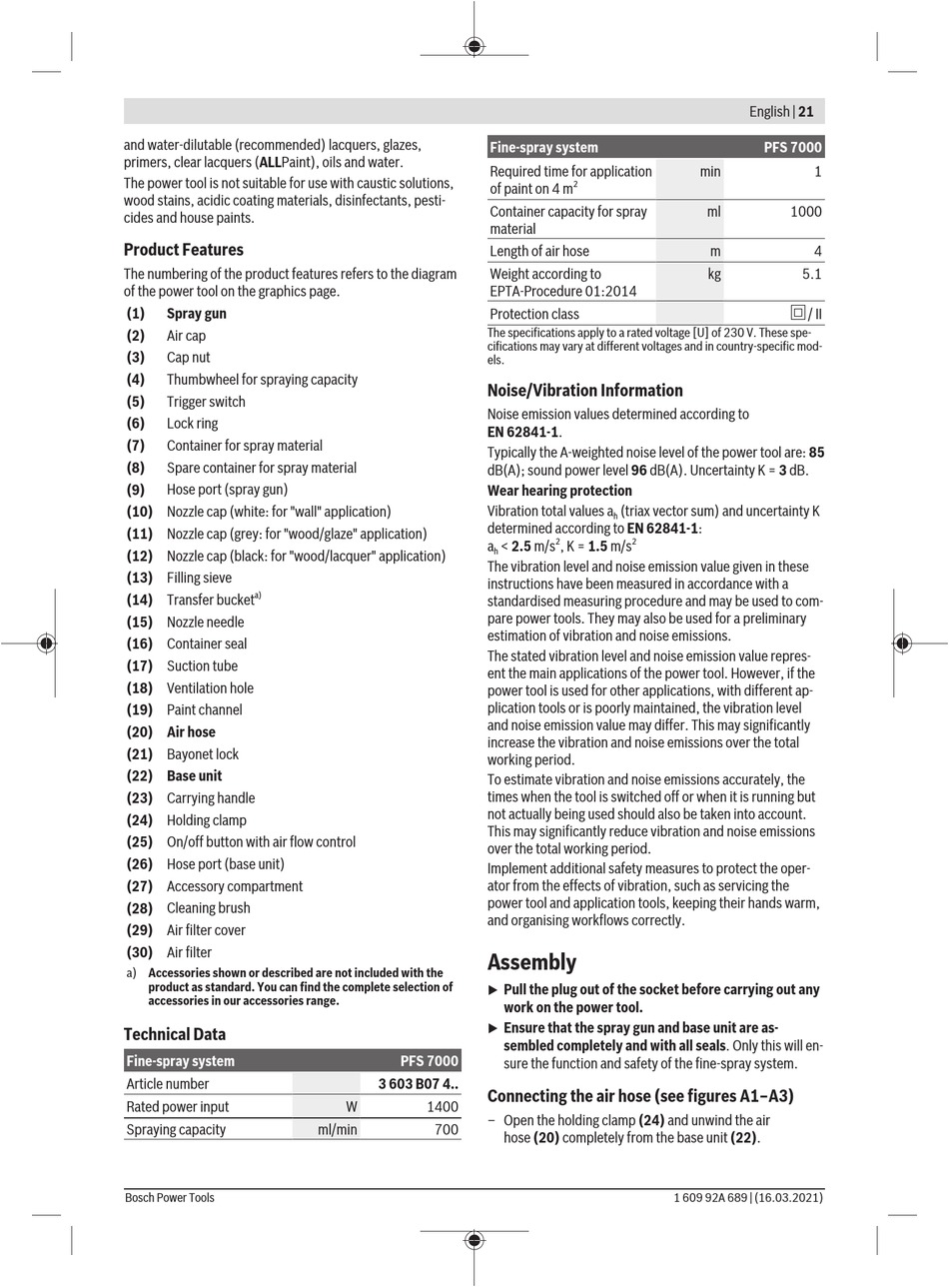

and water-dilutable (recommended) lacquers, glazes,
primers, clear lacquers (ALLPaint), oils and water.
The power tool is not suitable for use with caustic solutions,
wood stains, acidic coating materials, disinfectants, pesti-
cides and house paints.

Product Features

The numbering of the product features refers to the diagram
of the power tool on the graphics page.
(1) Spray gun
(2) Air cap
(3) Cap nut
(4) Thumbwheel for spraying capacity
(5) Trigger switch
(6) Lock ring
(7) Container for spray material
(8) Spare container for spray material
Hose port (spray gun)
(9)
(10) Nozzle cap (white: for "wall" application)
(11) Nozzle cap (grey: for "wood/glaze" application)
(12) Nozzle cap (black: for "wood/lacquer" application)
(13) Filling sieve
a)
(14) Transfer bucket
(15) Nozzle needle
(16) Container seal
(17) Suction tube
(18) Ventilation hole
(19) Paint channel
(20) Air hose
(21) Bayonet lock
(22) Base unit
(23) Carrying handle
(24) Holding clamp
(25) On/off button with air flow control
(26) Hose port (base unit)
(27) Accessory compartment
(28) Cleaning brush
(29) Air filter cover
(30) Air filter
a) Accessories shown or described are not included with the
product as standard. You can find the complete selection of
accessories in our accessories range.

Technical Data

Fine-spray system
Article number
Rated power input
Spraying capacity
Bosch Power Tools
Fine-spray system
Required time for application
of paint on 4 m
Container capacity for spray
material
Length of air hose
Weight according to
EPTA-Procedure 01:2014
Protection class
The specifications apply to a rated voltage [U] of 230 V. These spe-
cifications may vary at different voltages and in country-specific mod-
els.

Noise/Vibration Information

Noise emission values determined according to
EN 62841-1.
Typically the A-weighted noise level of the power tool are: 85
dB(A); sound power level 96 dB(A). Uncertainty K = 3 dB.
Wear hearing protection
Vibration total values a
determined according to EN 62841-1:
a
h
The vibration level and noise emission value given in these
instructions have been measured in accordance with a
standardised measuring procedure and may be used to com-
pare power tools. They may also be used for a preliminary
estimation of vibration and noise emissions.
The stated vibration level and noise emission value repres-
ent the main applications of the power tool. However, if the
power tool is used for other applications, with different ap-
plication tools or is poorly maintained, the vibration level
and noise emission value may differ. This may significantly
increase the vibration and noise emissions over the total
working period.
To estimate vibration and noise emissions accurately, the
times when the tool is switched off or when it is running but
not actually being used should also be taken into account.
This may significantly reduce vibration and noise emissions
over the total working period.
Implement additional safety measures to protect the oper-
ator from the effects of vibration, such as servicing the
power tool and application tools, keeping their hands warm,
and organising workflows correctly.
Assembly
u
u
PFS 7000
3 603 B07 4..
Connecting the air hose (see figures A1–A3)
W 1400
– Open the holding clamp (24) and unwind the air
ml/min 700
2
(triax vector sum) and uncertainty K
h
2 2
< 2.5 m/s , K = 1.5 m/s
Pull the plug out of the socket before carrying out any
work on the power tool.
Ensure that the spray gun and base unit are as-
sembled completely and with all seals. Only this will en-
sure the function and safety of the fine-spray system.
hose (20) completely from the base unit (22).
1 609 92A 689 | (16.03.2021)
English | 21
PFS 7000
min 1
ml 1000
m 4
kg 5.1
/ II
