Setting and using method
You must press the RESET switch when you are completed with all the settings to reflect the set-
tings.

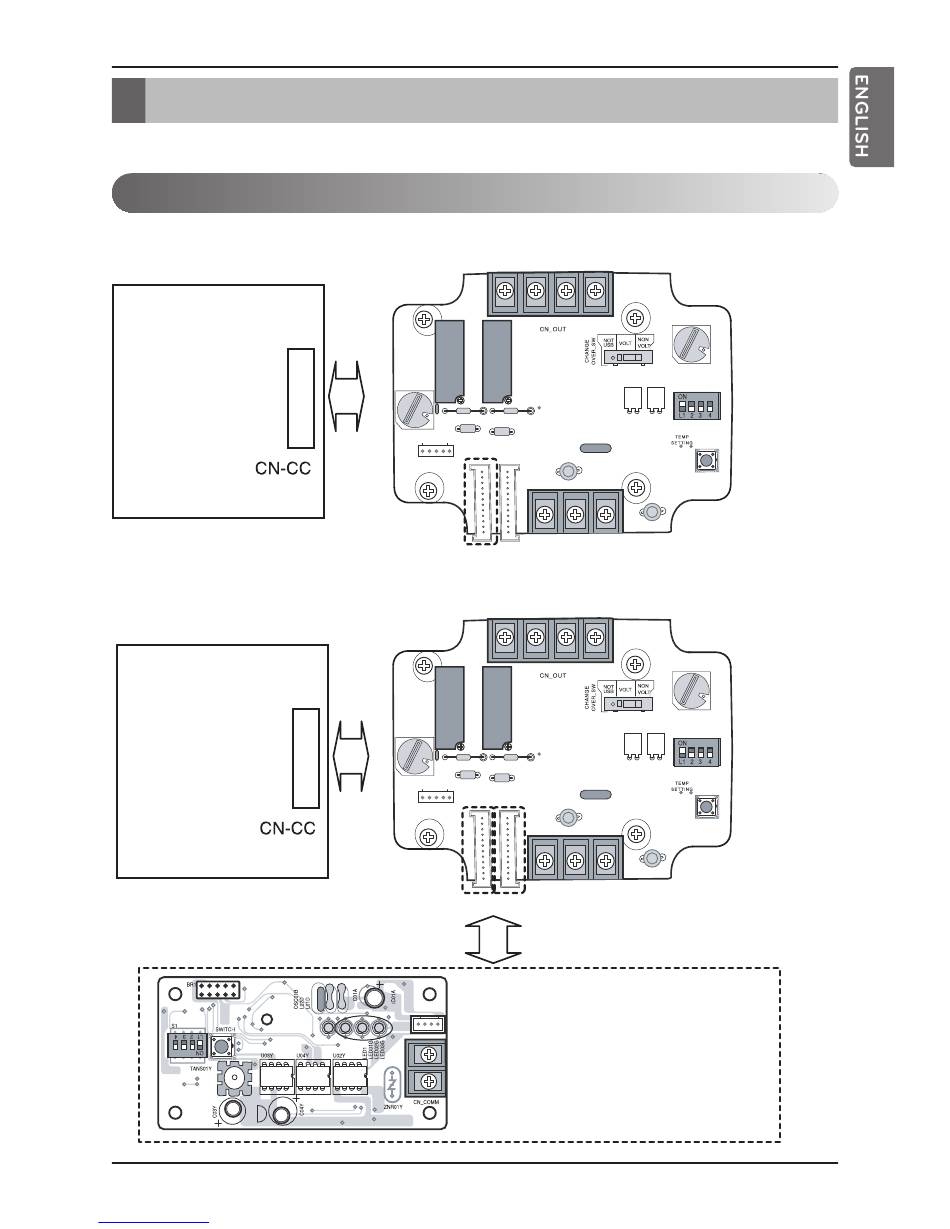

1. Power supply and indoor unit connection
n When using the Dry Contact For Setback independently
Indoor unit
n When using with the central controller (Only when the indoor
unit PCB is a non-communication model)
Indoor unit
PCB
Downloaded from
www.Manualslib.com
PCB
manuals search engine
CN_INDOOR
CN_INDOOR
CN_INDOOR
CN_INDOOR
CN_INDOOR
CN_INDOOR
CN_PI485
PI485: Connect to central controller
Setting and using method
Installation Manual 9
