CONNECTIONS

To assure safety, make sure all units are turned off before making any connections.
We recommend that you use the AC Power Adapter/Charger.
When connecting the provided cables, be sure to plug the connectors equipped with core
filters into the video camera.
Do not make any connections to the video camera's DV OUT connector.

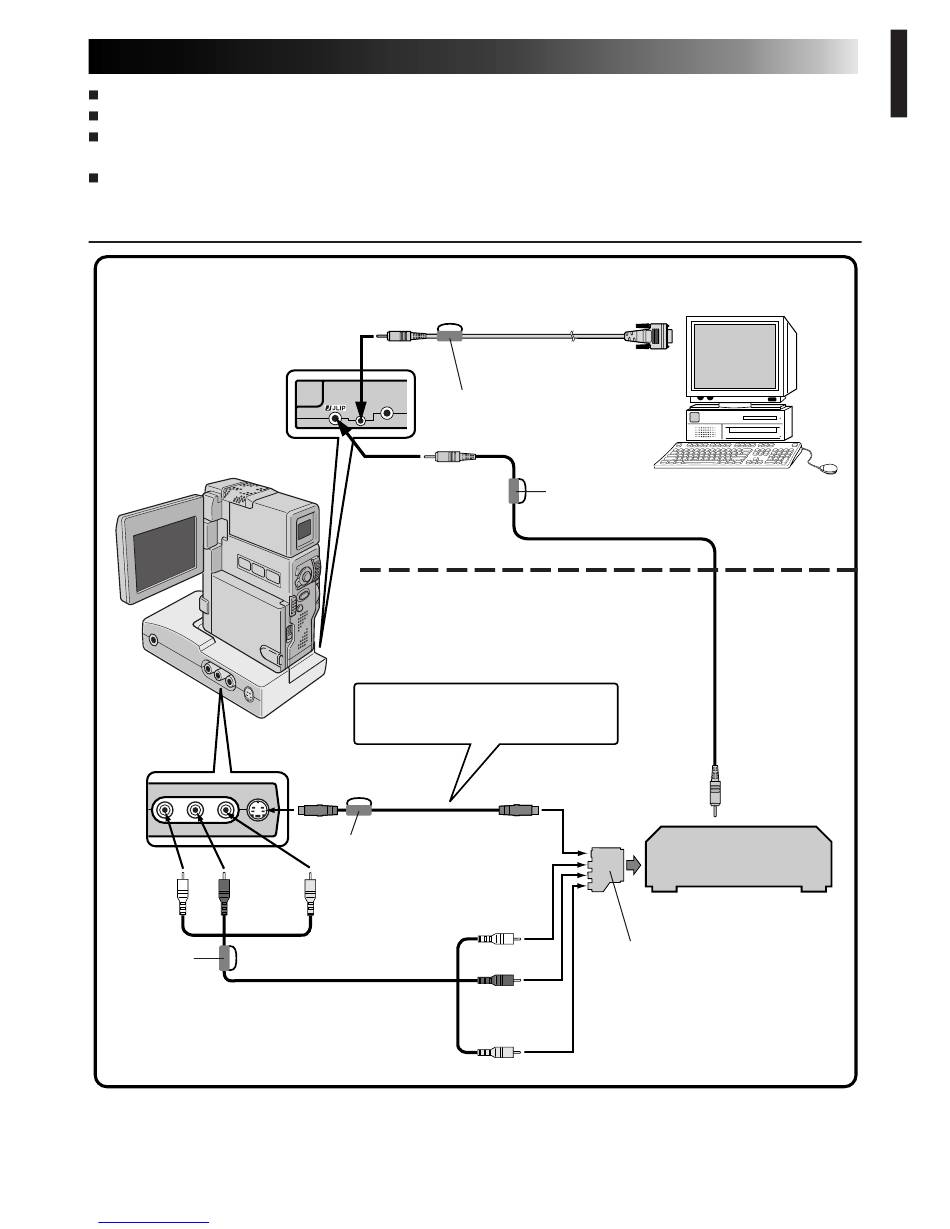

WHEN CONNECTED TO A VCR EQUIPPED WITH A JLIP JACK
When JLIP Video Capture is used:
Video Camera
White to
AUDIO L
Core filter
Downloaded from www.Manualslib.com
To PC jack
When JLIP Video Producer is used:
Connect this if the video unit has
an S-Video input jack.
To S OUT
jack
Core filter
Red to
Yellow to
AUDIO R
VIDEO
AUDIO/VIDEO cable
(provided)
manuals search engine
PC connection cable
(provided)
Core filter
To JLIP jack
Core filter
To S-VIDEO
input jack
S-VIDEO cable
(provided)
White to
AUDIO L
Red to
AUDIO R
Yellow to VIDEO
To COM port
(RS-232C)
PC
JLIP cable
(provided)
To JLIP jack
VCR
(Recording deck)
If your VCR has a SCART
connector, use the cable
adapter (PAL only).
7
EN
