3. Handling

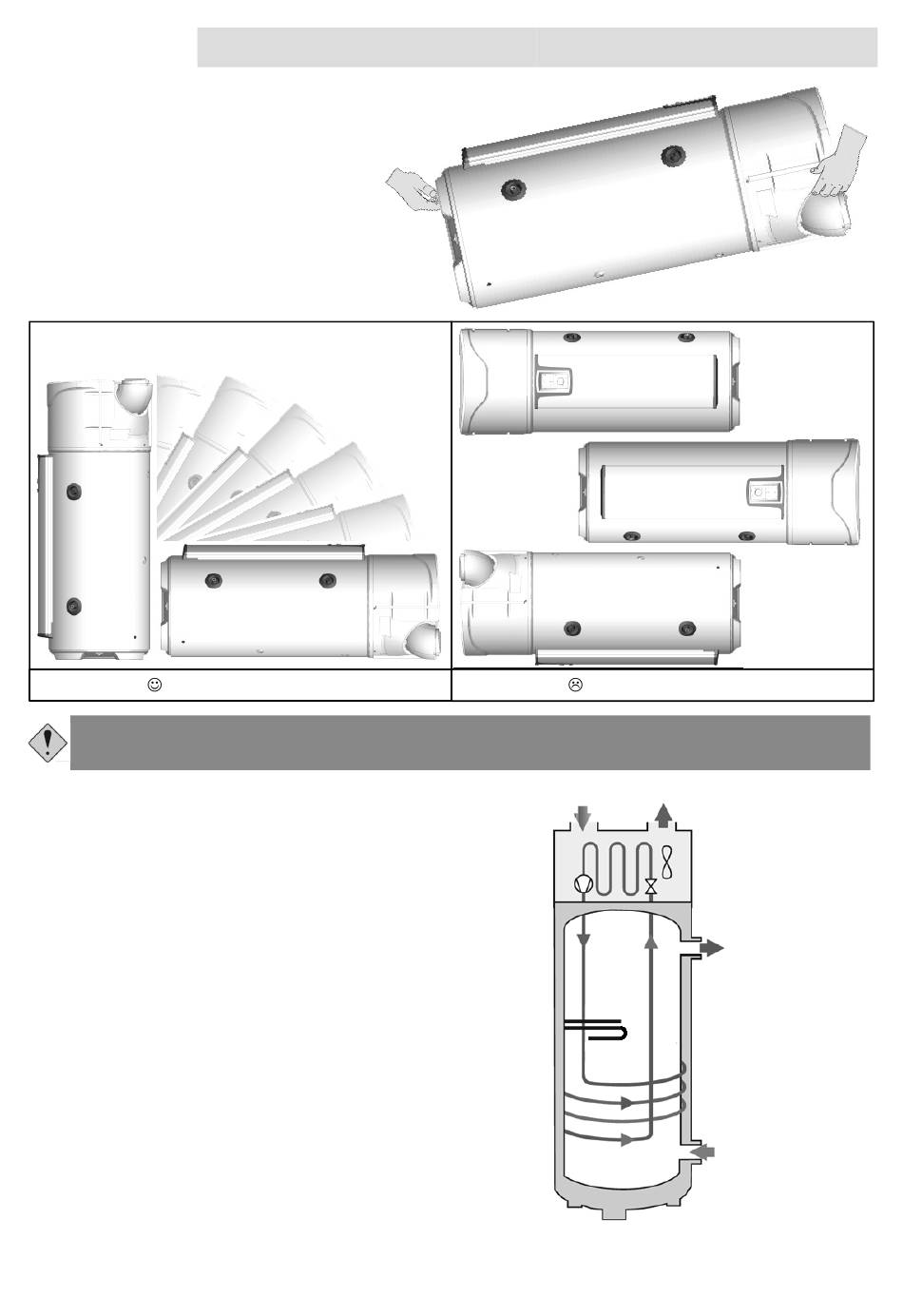

The product incorporates several handles
making it easier to move to the location
where it will be installed.
To transport the water heater to the
installation location use the lower and
upper handles.
Acceptable position Prohibited positions
Follow the transport and handling recommendations on the water heater's packaging.

4. Operating principle

Intake air Outlet air
The thermodynamic water heater uses exterior air for
heating the domestic supply water.
The refrigerant contained in the heat pump carries out a
thermodynamic cycle allowing it to transfer the energy
contained in the outside air to the water of the tank.
Hot water outlet
The fan sends a stream of air into the evaporator. As it
passes through the evaporator, the refrigerant evaporates.
The compressor compresses the vapours of the fluid which
raises its temperature. This heat is transmitted by the
condenser wrapped around the tank and warms the water
tank.
Cold water inlet
The fluid then flows into the thermostatic expansion valve,
it cools and returns to its liquid form. It is then ready to
receive heat again in the evaporator.
