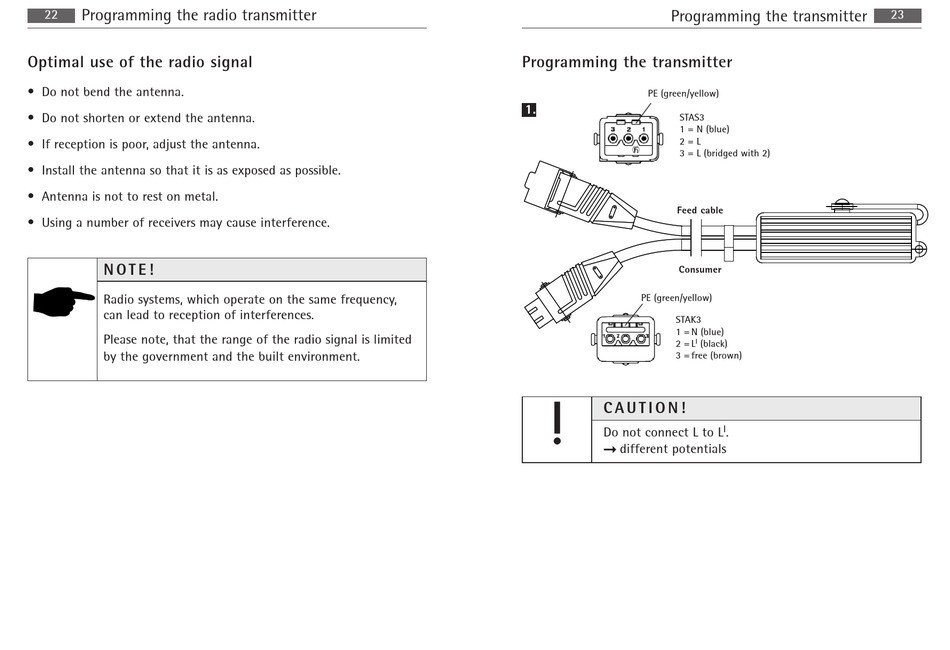

Programming the radio transmitter

22
Optimal use of the radio signal
• Do not bend the antenna.
• Do not shorten or extend the antenna.
• If reception is poor, adjust the antenna.
• Install the antenna so that it is as exposed as possible.
• Antenna is not to rest on metal.
• Using a number of receivers may cause interference.
N O T E !
Radio systems, which operate on the same frequency,
can lead to reception of interferences.
Please note, that the range of the radio signal is limited
by the government and the built environment.

Programming the transmitter

Programming the transmitter
PE (green/yellow)
1.
STAS3
1 = N (blue)
2 = L
3 = L (bridged with 2)
Feed cable
Consumer
PE (green/yellow)
STAK3
1 = N (blue)
I
2 = L (black)
3 = free (brown)
!
C A U T I O N !
Do not connect L to L
U different potentials
23
