a. Camera

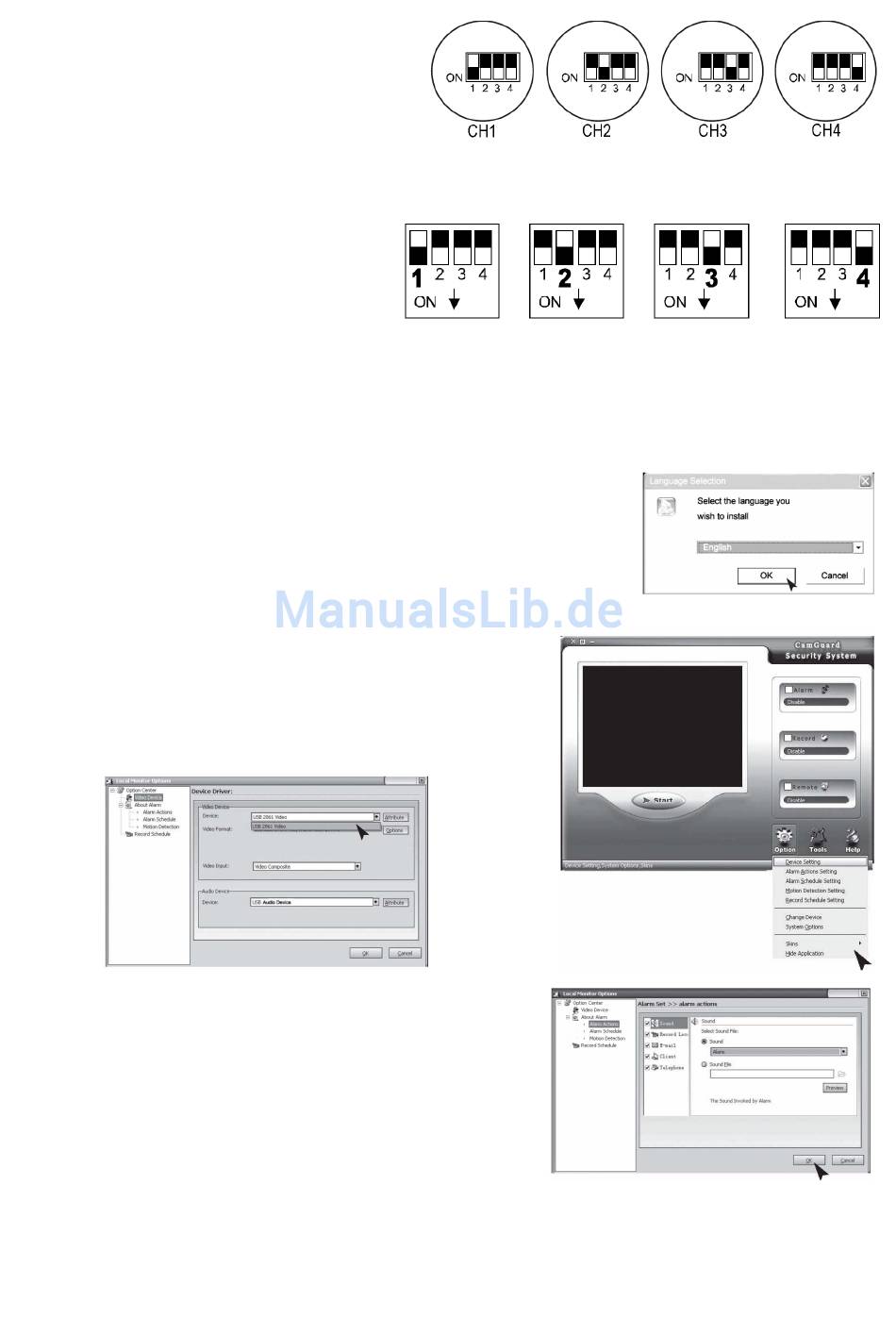

Select the channel using a pointed object. The
selected channel will remain activated. Only one
channel may be activated at one time.
b. Receiver
• Manual Channel Selection
Select the channel using a pointed object. The
selected channel will remain activated.
• Auto Scan
This mode is useful when there is more than one camera connected. Assign a unique channel to each camera and
place all DIP switches on the receiver to ON. Place the DIP to OFF when the channel is not being occupied by a
camera. The monitor will switch channel every 5 seconds.
7. Software
Insert the CD-ROM into the drive. Double click on the CamGuard icon to start the
installation. Next, select the desired language and click OK to confirm. Follow the
installation procedure and click Finish to complete.
• Device Setting
Select Device Setting under Option.
Device: Choose a device for the audio and video source.
Attribute: Display the dialogue box of the selected device.
Options: Set the size and frame rate of the selected device.
• About Alarm
Set the alarm duration by entering the seconds in the box.
Alarm Actions:
Sound: The alarm will sound as soon as an anomaly is detected.
Select a sound type from the sound files (*.wav) in your
computer or from the provided list. Select Sound, and select
one from the list. Click OK to confirm.
Record Location: As soon as an anomaly is detected, the images will automatically be saved on the local disc.
Select to save as an image file (*.jpeg) or a video file. An image file will be saved every 5 seconds.
Email: As soon as an anomaly is detected, you will be automatically informed by email with the images in an
attachment.
