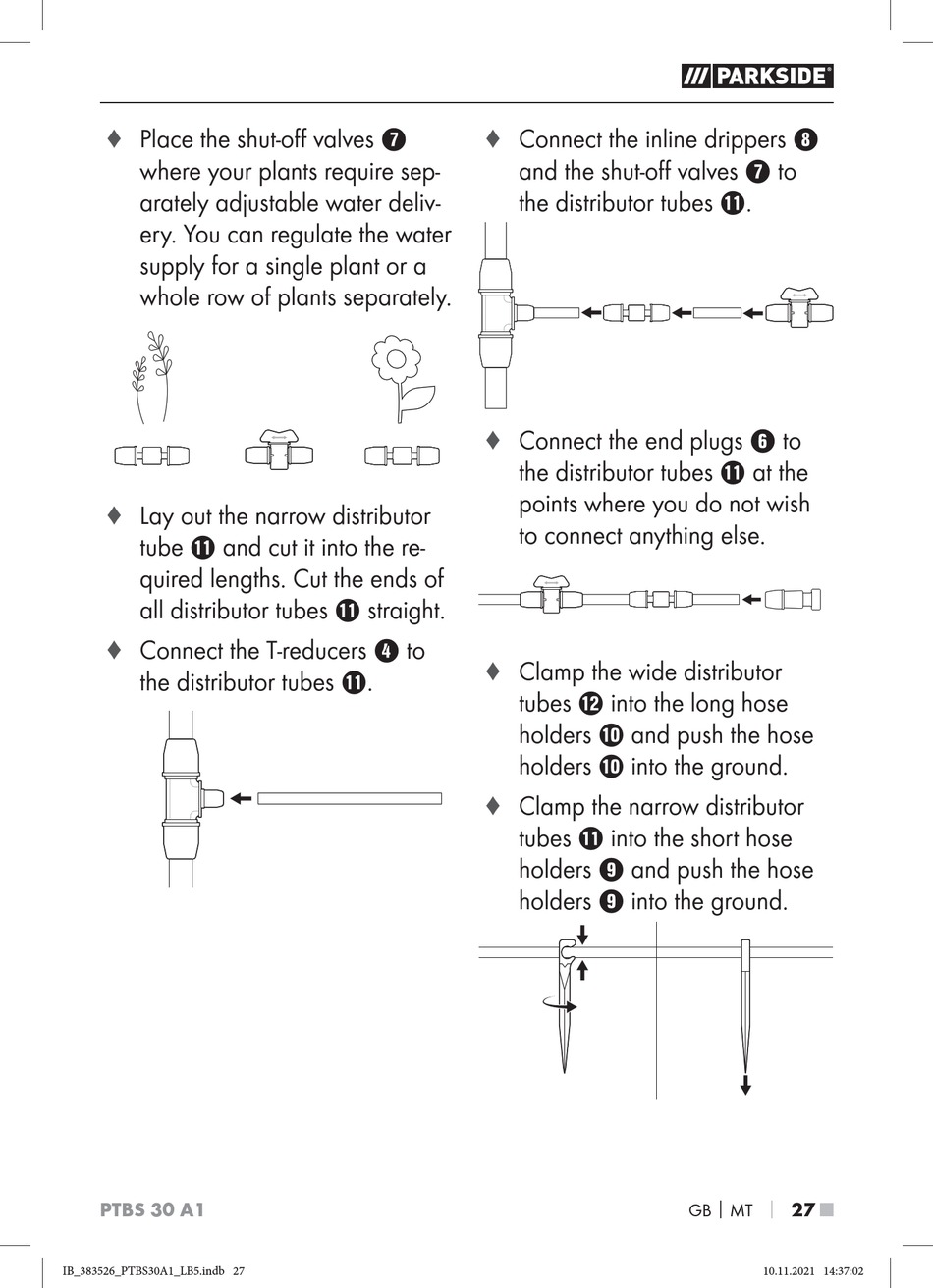

Place the shut-off valves 7
♦
where your plants require sep-
arately adjustable water deliv-
ery. You can regulate the water
supply for a single plant or a
whole row of plants separately.
♦ Lay out the narrow distributor
tube q and cut it into the re-
quired lengths. Cut the ends of
all distributor tubes q straight.
Connect the T-reducers 4 to
♦
the distributor tubes q.
PTBS 30 A1
IB_383526_PTBS30A1_LB5.indb 27 IB_383526_PTBS30A1_LB5.indb 27
Connect the inline drippers 8
♦
and the shut-off valves 7 to
the distributor tubes q.
Connect the end plugs 6 to
♦
the distributor tubes q at the
points where you do not wish
to connect anything else.
♦ Clamp the wide distributor
tubes w into the long hose
holders 0 and push the hose
holders 0 into the ground.
♦ Clamp the narrow distributor
tubes q into the short hose
holders 9 and push the hose
holders 9 into the ground.
