All manuals and user guides at all-guides.com English Page 3 Français Page 15 Deutsch Seite 27 Nederlands Pagina 39 Italiano Pagina 51 Ελληνικά Σελίδα 63...

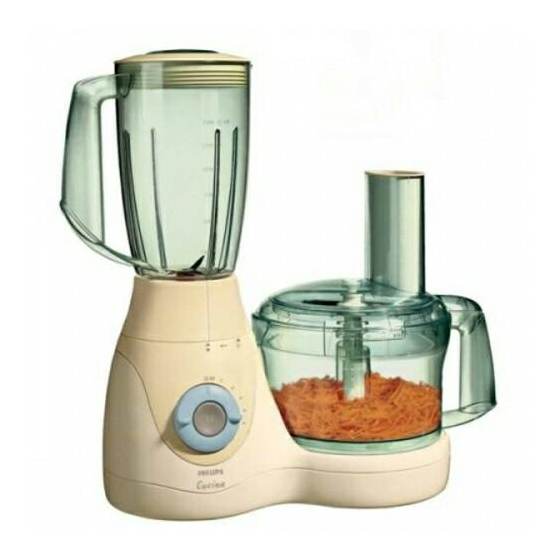

All manuals and user guides at all-guides.com English General description (fig. 1) Motor unit Bowl Lid of bowl Peg of lid (activates and deactivates the safety lock) Projection (covers the opening in the handle) Built-in safety lock £ Blade Slicing/grating disc (medium fine, ≠...
Seite 3
(top line of the graduation). Please contact your Philips dealer or an authorised Philips service centre • Do not exceed the maximum amounts and processing times if the automatic cut-out system is activated time and again.
All manuals and user guides at all-guides.com Placing the bowl (B) (fig. 2) Chute and pusher - Put the bowl on the food processor as • The chute can be used to add liquid and shown (1) solid ingredients (fig. 7). - Turn the handle in the direction of the •...
Seite 5
All manuals and user guides at all-guides.com £ Blade - remove the ingredients from the blade or the inside of the bowl with a spatula. Be careful: the cutting edges of the blade • Do not chop very hard ingredients like are very sharp! coffee beans, nutmeg and ice cubes.
Seite 7
All manuals and user guides at all-guides.com ® Blender (Q-U) - Remove the screw cap (P) (fig. 29). - Mount the blender jar onto the attaching Important: hole and turn it in the direction of the arrow until it is firmly fixed (fig. 30). •...
Seite 8
All manuals and user guides at all-guides.com Tips: them to become blunt. • Liquid ingredients (for example oil for • The gearwheels of the beater can be making mayonnaise) can be poured into detached and cleaned very easily the blender jar through the hole in the (fig.
Seite 9
All manuals and user guides at all-guides.com Ingredients Max. Speed Accessory Procedure Applications quantity setting Apples, carrots, Cut the fruit/vegetables into pieces that fit into the chute. Fill the chute with Salads, raw celeriac 500 g 2 / M ≠ the pieces and grate them while pressing the pusher lightly.
Seite 11
All manuals and user guides at all-guides.com Ingredients Max. Speed Accessory Procedure Applications quantity setting Nuts Use the pulse setting (M) for coarse chopping or max. speed for fine Salads, bread, £ - chopping 250 g 2 / M chopping. almond paste, puddings Onions...
Seite 13
- Put the mains plug back in the socket - Switch on the appliance again. If the automatic cut-out system is activated repeatedly, contact your Philips dealer or the Philips Service Centre in your country. The chopping, slicing or grating Select the correct speed.
All manuals and user guides at all-guides.com Français Description générale (fig.1) Bloc moteur Couvercle du bol Doigt de sécurité du bol (active et désactive l'interrupteur de sécurité) Ergot du bol (couvre l'orifice de la poignée) Interrupteur de sécurité incorporé £ Couteau ≠...
Seite 15
• Quand vous mixez ou mélangez des liquides, ne dépassez pas le repère de remplissage maximum du bol ou du mélangeur (trait Consultez votre revendeur ou un Centre Service Agréé Philips si supérieur de graduation). l'interrupteur de sécurité se déclenche trop fréquemment.
All manuals and user guides at all-guides.com Pour mettre en place le bol (B) (fig. 2) La cheminée de remplissage et le poussoir - Placez le bol sur le bloc moteur (1). - Tournez à fond la poignée dans le sens de •...
Seite 17
All manuals and user guides at all-guides.com £ Le couteau à devenir pâteux. • Si des aliments s'enroulent autour du Attention : les lames du couteau sont couteau ou collent à la paroi du bol : très aiguisées et tranchantes ! - débranchez d'abord l'appareil - retirez le couvercle du bol •...
Seite 19
All manuals and user guides at all-guides.com ® Le bol mélangeur (Q-U) Assurez-vous qu'il est correctement enclenché ! Important : • Retirez le capuchon fileté (P) (fig. 29). • Montez le bol mélangeur sur l'ouverture de • L'appareil ne peut fonctionner que si raccordement et tournez-le dans le sens de le bol mélangeur est fixé...
Seite 20
All manuals and user guides at all-guides.com Conseils : • Evitez de cogner les lames contre des • Les ingrédients liquides (par exemple pour objets durs car cela les émousserait. une mayonnaise) peuvent être versés dans • Les roues d'entraînement du fouet peuvent le bol mixer par l’ouverture du bouchon mis être retirées et lavées très facilement à...
Seite 21
All manuals and user guides at all-guides.com Ingredients Qtité Réglage Acces- Utilisation Usages maximum soires vitesse Pommes, carottes, céleri 500 g 2 / M ≠ Coupez les fruits ou les légumes grossièrement pour les introduire dans la Salades, légumes - émincer, râper cheminée.
Seite 22
All manuals and user guides at all-guides.com Ingredients Qtité Réglage Acces- Utilisation Usages maximum soires vitesse Pâte (brisée) 500 g £ Mélangez d’abord la levure, du lait chaud et un peu de sucre. Ajoutez la Tourte aux pommes, - pétrir farine farine, le sucre, le sel, les œufs et de la margarine molle.
Seite 23
All manuals and user guides at all-guides.com Ingredients Qtité Réglage Acces- Utilisation Usages maximum soires vitesse Noix 250 g 2 / M Utilisez la touche Eclair (M) pour un hachage grossier et la vitesse Salades, pain, £ - hacher maximum pour un hachage fin. frangipane, entremets Oignons...
Seite 24
(N˚ 4822 690 10141). 4203 065 61960 - boîte de rangement pour les disques HR 2922 (N˚ 4822 690 40267). Demandez à votre revendeur ou Centre Service Agréé Philips si ces 4203 065 61890 accessoires sont disponibles. Si vous désirez commander des accessoires supplémentaires ou les remplacer, mentionnez les numéros...
Seite 25
All manuals and user guides at all-guides.com Vous n'êtes pas satisfait du fonctionnement de l'appareil ? Consultez le tableau suivant et lisez les sections appropriées dans la notice d'utilisation ! Problème : Solution possible Le sélecteur ne fonctionne pas Tournez le bol et/ou le couvercle dans la direction indiquée, aussi loin que possible (jusqu'à ce que vous entendiez un 'clic').
Seite 27
Markierung, besonders wenn Sie Flüssigkeiten Wenn der automatische Überhitzungsschutz das Gerät wiederholt verarbeiten. ausschaltet, so wenden Sie sich bitte an Ihren Philips-Händler oder das • Überschreiten Sie niemals die Mengen und die Zeiten, die in der Philips Service Center in Ihrem Lande.
All manuals and user guides at all-guides.com Aufsetzen der Schüssel (B) (Abb. 2) Einfüllöffnung und Stopfer - Setzen Sie die Schüssel auf das Gerät • Durch die Einfüllöffnung lassen sich (Abb. 2, 1). flüssige und feste Zutaten in die Schüssel - Drehen Sie den Griff in Pfeilrichtung bis er geben (Abb.
All manuals and user guides at all-guides.com Setzen Sie den Geräteschalter (N) auf die Schneiden Sie Stücke in Würfel von ca. 3 Position, die in der Tabelle empfohlen wird, cm Kantenlänge vor. und schalten Sie dann das Gerät ein. Wenn •...
All manuals and user guides at all-guides.com - Geben Sie die Zutaten durch die (Abb. 19). Einfüllöffnung (Abb. 15). - Verschließen Sie die Einfüllöffnung - Drücken Sie vorsichtig mit dem Stopfer (Abb. 20) mit dem Stopfer. nach (Abb. 16). - Stellen Sie den Geräteschalter (N) auf die - Zum Raspeln und Schneiden stellen Sie erforderliche Position (vgl.
Seite 31
All manuals and user guides at all-guides.com ® Mixbecher-Aufsatz (Q bis U) Zusammensetzen und Auseinander- nehmen des Mixbecher-Aufsatzes Wichtig: - Legen Sie den Dichtungsring (T) auf den Rand der Messereinheit (U) (Abb. 27). • Das Gerät kann mit oder ohne den - Schrauben Sie dann die Messereinheit in Mixbecher-Aufsatz verwendet Pfeilrichtung (Abb.
Seite 32
All manuals and user guides at all-guides.com Hinweise: Gebrauch in warmem Wasser, dem Sie • Flüssige Zutaten, z.B. Öl zur Mayonnaise, etwas Spülmittel zugesetzt haben. können Sie zugeben, indem Sie den Diese Teile sind für den Geschirrspüler Einsatz (Q) des Deckels umdrehen und die nicht geeignet! Zutaten durch das Loch im Einsatz zufügen •...
Seite 33
All manuals and user guides at all-guides.com Anwendung Höchst- Schalter- Zubehör Zubereitung Anwendungs- menge position beispiele Äpfel, Möhren, Sellerie ≠ Das Obst/Gemüse in Stücke schneiden, die durch die Einfüllöffnung 2 / M - Raspeln/Schneiden 500 g passen. Dann die Stücke unter leichtem Druck mit dem Stopfer raspeln. Salate, Rohkost Biskuitteig 3 Eier...
Seite 34
All manuals and user guides at all-guides.com Anwendung Höchst- Schalter- Zubehör Zubereitung Anwendungs- menge position beispiele Salate, Pizzas, Käse: Gouda u.a. 200 g 1 - 2 ≠ Den Käse in Stücke schneiden, die durch die Einfüllöffnung passen. Fondue - Raspeln Soßen, Suppen, Gar- Kräuter, z.B.
Fragen Sie Ihren Händler unter Angabe der Servicenummer, ob das 4203 065 61890 gewünschte Teil in Ihrem Lande erhältlich ist oder wenden Sie sich an das Philips Service Center in Ihrem Lande 4203 065 61970 4822 418 10342 4203 065 61900...
- Schalten Sie das Gerät wieder ein. Wenn der automatische Überhitzungsschutz das Gerät wiederholt ausschaltet, so wenden Sie sich bitte an Ihren Philips-Händler oder das Philips Service Center in Ihrem Lande. Das Resultat ist beim Schneiden, Stellen Sie die richtige Geschwindigkeit ein. Schauen Sie nach den Angaben auf dem Gerät oder in der Raspeln oder Zerkleinern nicht Gebrauchsanweisung.
All manuals and user guides at all-guides.com Nederlands Algemene beschrijving (fig. 1) Motorgedeelte Deksel van kom Nok van deksel (schakelt de ingebouwde beveiliging in en uit) Afsluitklepje (sluit de opening in het handvat af) Ingebouwde beveiliging £ Sikkelmes ≠ Snij-/raspschijf (dubbelzijdig, middelfijn) ß...
Seite 39
• Overschrijd niet de maximale hoeveelheden en bewerkingstijden, zoals aangegeven in de tabellen. Neem contact op met uw Philips leverancier of met een erkend Philips • Laat de draaiende delen altijd eerst tot stilstand komen vóórdat u Service Centrum als de automatische beveiliging telkens opnieuw in het deksel open draait.
Seite 40
All manuals and user guides at all-guides.com plaatsen (fig. 2) Vulopening en stamper - Zet de kom op zijn plaats, zoals • De vulopening kan gebruikt worden om aangegeven (1). vloeistoffen en vaste ingrediënten toe te - Draai de handgreep in de richting van de voegen (fig.
Seite 41
All manuals and user guides at all-guides.com £ Sikkelmes • Hak geen zeer harde ingrediënten, zoals koffiebonen, nootmuskaat en ijsklontjes: Pas op: de snijkanten zijn erg scherp! deze kunnen het sikkelmes bot maken. • Het sikkelmes is geschikt voor hakken, Voor de meest geschikte snelheid en de mixen, mengen, pureren en het bereiden juiste wijze van inschakelen: zie de tabel.
Seite 43
All manuals and user guides at all-guides.com ® Mengkan (Q - U) Waarschuwing: Forceer de handgreep van de mengkan niet. Belangrijk - Druk het deksel op zijn plaats (fig. 31). - Bevestig het afsluitdeksel: omlaag duwen • Het apparaat kan mèt of zonder en in de richting van de pijl draaien tot het mengkan gebruikt worden.
Seite 44
All manuals and user guides at all-guides.com Tips: Pas op: de snijranden zijn erg scherp! • Vloeibare ingrediënten kunt u door het • Zorg ervoor dat de snijranden van het gaatje van het op de kop geplaatste sikkelmes en van de snijschijf niet met afsluitdeksel gieten (b.v.
Seite 45
All manuals and user guides at all-guides.com Ingrediënten Max. Snel- Hulpstuk Bereidingswijze Toepassingen hoeveel- heid heid Grof: een weinig vocht toevoegen. Fijn: indien nodig wat vocht toevoegen Babyvoeding, Groente en vlees (gekookt) totdat de puree gelijkmatig genoeg is. peutervoeding. - pureren 500 gram ®...
Seite 47
All manuals and user guides at all-guides.com Ingrediënten Max. Snel- Hulpstuk Bereidingswijze Toepassingen hoeveel- heid heid Noten Salades, brood, £ - hakken 250 gram 2 / M Gebruik M voor een grof resultaat, en maximale snelheid voor een fijn amandelspijs, resultaat.
Seite 49
- steek de stekker in het stopcontact; - schakel het apparaat weer in. Mocht het apparaat zichzelf regelmatig automatisch uitschakelen, wendt u zich dan tot uw Philips- leverancier, of tot het Philips Servicecentrum in uw land. - Resultaat bij hakken, snijden of - Kies de juiste snelheid.
All manuals and user guides at all-guides.com Italiano Descrizione generale (fig. 1) Blocco motore Vaso Coperchio del vaso Linguetta del coperchio (per bloccare e sbloccare il dispositivo di sicurezza) Beccuccio (per coprire l’apertura dell’impugnatura) Dispositivo di sicurezza incorporato £ Lama Disco per affettare/grattugiare (medio ≠...
Seite 51
• Dopo l’uso, staccate sempre la spina dalla presa. (vedere tabella, pagg. 52-58) • Se il cavo di alimentazione di questo apparecchio si dovesse rovinare, occorrerà farlo sostituire da un Centro Assistenza autorizzato Philips perchè occorrono speciali attrezzature e/o ricambi. • Conservate queste istruzioni per ulteriori consultazioni.
All manuals and user guides at all-guides.com Come posizionare il vaso (B) (fig. 2) Apertura per l’inserimento del cibo pestello - Posizionate il vaso come indicato (1). - Ruotate l’impugnatura in direzione della • L’apertura può essere utilizzata per aggi- freccia fino a quando si arresta con un ungere ingredienti liquidi o solidi (fig.
Seite 53
All manuals and user guides at all-guides.com £ Lama • Non tritate ingredienti molto duri, come ad esempio chicchi di caffè, noce moscata e Attenzione: i bordi della lama sono molto cubetti di ghiaccio per evitare di taglienti. danneggiare la lama. •...
Seite 55
All manuals and user guides at all-guides.com Frullatore (Q - U) Attenzione: non esercitate troppa pressione sul manico del vaso. IMPORTANTE • Mettete il coperchio, premendo leggermente (fig. 31). • L’apparecchio può essere usato con o • Montate il tappo premendolo verso il senza il frullatore collegato al gruppo basso e ruotatelo nella direzione delle motore.
Seite 56
All manuals and user guides at all-guides.com Consigli: perché potrebbero danneggiarsi. • Per introdurre gli ingredienti liquidi (ad • Gli ingranaggi della frusta possono essere esempio l’olio per la maionese), potete facilmente smontati per la pulizia utilizzare il foro posto nel tappo, dopo (figg.
Seite 57
All manuals and user guides at all-guides.com Ingredienti Accesori Procedura Applicazioni Q.tà max. Velocità Mele, carote, sedano 500 g. ≠ Tagliate a pezzetti gli ingredienti. Riempire l’apertura con i pezzetti e Insalate, crudité Grattuggiare grattugiare premendo delicatamente con il pestello Affettare Pastella (pancake) 500 ml.
Seite 58
All manuals and user guides at all-guides.com Ingredienti Accesori Procedura Applicazioni Q.tà max. Velocità Pasta (pasticcini) 500 g di Mescolate il lievito con il latte tiepido e un pò di zucchero. Aggiungete la Pasticcini alla frutta, £ Impastare farina farina, lo zucchero, il sale, le uova e la margarina ammorbidita. Impastate biscotti, dolci alla fino a quando la pasta si attacca alle pareti del vaso (occorrerà...
Seite 59
All manuals and user guides at all-guides.com Ingredienti Accesori Procedura Applicazioni Q.tà max. Velocità £ Noci, frutta secca 250 g. Usate il tasto M per tritare grossolanamente oppure la vel. max. per un Insalate, pane, torta, Tritare composto più fine budini Cipolle Insalate, cibi cotti...
Seite 61
Riaccendete l’apparecchio. Nel caso in cui il dispositivo di sicurezza intervenisse troppo spesso, contattate un rivenditore autorizzato Philips o un centro di assistenza Philips. L’apparecchio non taglia, trita o Selezionate la giusta velocità. Fate riferimento alle istruzioni riportate nel manuale o direttamente grattugia in modo soddisfacente sull’apparecchio.
All manuals and user guides at all-guides.com Ελληνικά Γενική περιγραφή (εικ. 1) Mονάδα µοτέρ Mπωλ Kαπάκι του µπωλ Mύτη καπακιού (ενεργοποιεί και απενεργοποιεί την ασφάλεια) Προεξοχή (καλύπτει το άνοιγµα στη χειρολαβή) Eνσωµατωµένη ασφάλεια διακοπής λειτουργίας £ K πτης ∆ίσκος κοπής σε φέτες/τριψίµατος ≠...
Seite 63
• Aποσυνδέστε τη συσκευή απ την πρίζα του τοίχου µετά τη χρήση. • Άν το καλώδιο τάσεως της συσκευής αυτής υποστεί βλάβη, πρέρει να αποκατασταθεί αποκλειστικά απ εξουσιοδοτηµένο επισκευαστή της Philips, δι τι για την επισκευή απαιτούνται ειδικά εργαλεία και εξαρτήµατα. • Φυλάξτε τις οδηγίες αυτές και για µελλοντική χρήση.
Seite 64
All manuals and user guides at all-guides.com Tοποθέτηση του µπωλ (B) (εικ. 2) Στ µιο (L) και ωθητής – Tοποθετήστε το µπωλ πως – Tο στ µιο χρησιµοποιείται για να προ- φαίνεται(1). σθέτετε υγρά και στερεά υλικά (εικ. 7). – Στρέψτε τις χειρολαβές προς την –...
Seite 65
All manuals and user guides at all-guides.com £ K πτης • Aν κολλήσει τροφή στον κ πτη ή στο εσωτερικ του µπωλ: Προσέξτε γιατί ο κ πτης είναι πολύ – Σβήστε τη συσκευή κοφτερ ς – Bγάλτε το καπάκι απ το µπωλ •...
Seite 67
All manuals and user guides at all-guides.com Mπλέντερ (Q-U) Bεβαιωθείτε τι έχει στερεωθεί καλά. – Bγάλτε το βιδωτ πώµα (P) (εικ. 29). Σηµαντικ : – Tοποθετήστε την κανάτα στην οπή • H συσκευή µπορεί να χρησιµοποιηθεί σύνδεσης και στρέψτε την προς την χωρίς...
Seite 68
All manuals and user guides at all-guides.com Συµβουλές: Kαθαρισµ ς • Yγρά υλικά ( πως λάδι για την παρασκευή µαγιονέζας), µπορείτε να • Aποσυνδέστε πρώτα τη συσκευή απ τα βάλετε στο µπλέντερ απ την οπή την πρίζα του τοίχου, πριν αρχίσετε να στο...
Seite 69
All manuals and user guides at all-guides.com Yλικά Mεγ. Έναρξη Eξάρτηµα Eπεξεργασία Eφαρµογές Ποσ τητα & Tαχύτητα 2 / M Mήλα, καρ τα 500 γρ. K ψτε τα φρούτα/υλικά σε κοµµάτια Γεµίστε το στ µιο και αλέστε τα Σαλάτες, ωµά ≠...
Seite 72
All manuals and user guides at all-guides.com Mέρη Tα παρακάτω µέρη αποτελούν τα συνηθισµένα εξαρτήµατα της συσκευής: – Mπωλ (B) – Kαπάκι (C) £ – K πτης (G) ≠ – ∆ίσκος κοπής σε φέτες/ τριψίµατος (H) 4203 065 61930 ß –...
Seite 73
– Θέστε σε λειτουργία πάλι τη συσκευή. Aν η αυτ µατη ασφάλεια της συσκευής ενεργοποιείται επαναληπτικά, συµβουλευτείτε τον προµηθευτή σας ή το Kέντρο Eξυπηρέτησης Πελατών της Philips. Tα αποτελέσµατα κοψίµατος ∆ιαλέξτε τη σωστή ταχύτητα. ∆είτε τις ενδείξεις στη συσκευή και στις οδηγίες χρήσεως.
Seite 74
