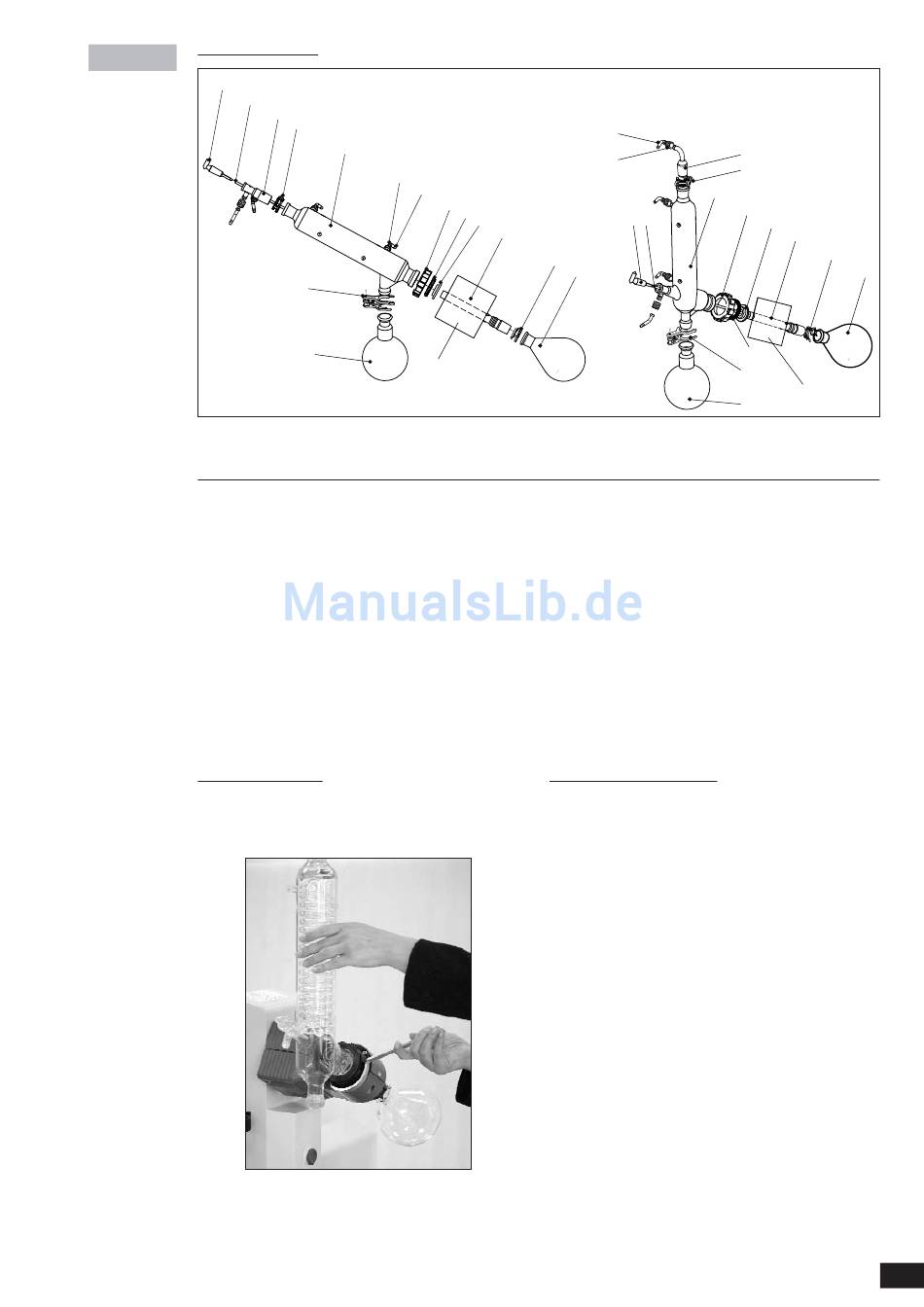

Mounting the glassware
4
5
Item Designation
1 Receiving flask
2 Clamp NS 29 (stainless steel)
3 Steam pipe
4 Stopcock
5 Pipe tube
6 Condenser
7 Connection
8 Clamp NS 29 (plastic)
9 Seal RV 06.13/ RV 06.15
10 Evaporator piston 1000 ml
11 Ball joint clamp RV 05.10
12 Screw joint cap
13 Hose connection
15 Locking nut
16 Spring ring
Removing the condenser
☞ Use the ring spanner provided to loosen union nuts that are tightly
fitted.
☞ Loosen the union nut by turning anticlockwise.
042009
Glassware
RV 10.2 diagonal
RV 10.20 diagonal, coated
7
8
6
12
13
15
11
1
Rotary head
Fig.13
13
12
16
9 4
3
2
10
Quantity
diagonal glassware
1
1
1
1
1
1 Diagonal condenser
1 Introduction sleeve
1
1
1
1
4
4
1
1
Description of special condensers
• RV 10.3 Vertical-intensive condenser with manifold
This vertical-intensive condenser features a double jacket design
for particularly efficient condensation.
Also available with coating (RV10.30)
• RV 10.4 Dry ice condenser
Dry ice condenser for distilling low-boiling solvents.
Cooling by dry ice, no cooling water required. Maximum conden-
sation thanks to low temperatures.
Also available with coating (RV10.40)
If a dry ice condenser is used, then the flow rate control system
must be switched of in menu "Distillation", menu option "Flow
rate control"; see also "Commissioning" section.
• RV 10.5 Vertical-condenser with manifold and cut-off valve for
reflux distillation
Also available with coating (RV10.50)
• RV 10.6 Vertical-intensive condenser with manifold and cut-
off valve for reflux distillation
This vertical-intensive action condenser features a double jacket
design for particularly efficient reflux distillation.
Also available with coating (RV10.60)
Glassware
RV 10.1 vertical
RV 10.10 vertical, coated
7
8
6
15
5
9
3
16
11
Rotary head
1
Quantity
vertical Glassware
1
1
1
1
1
1 Vertical condenser
1 Vacuum connection
1
1
1
1
4
4
1
1
2
10
